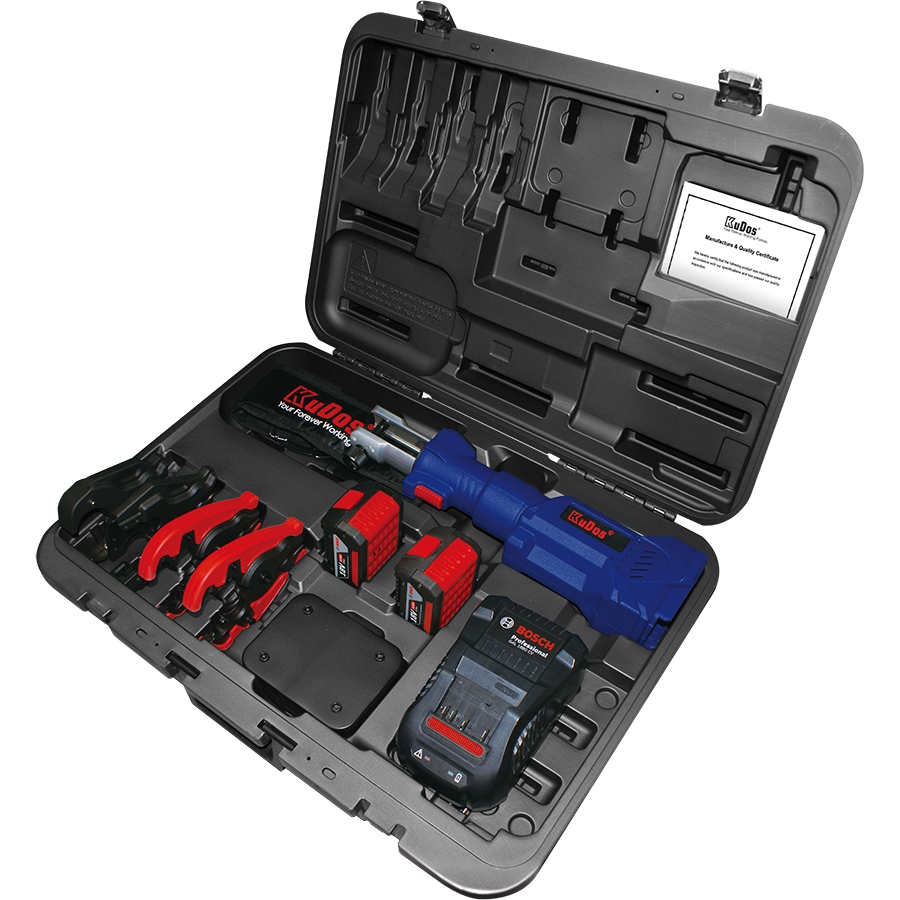

Multifunction KI-IL
Length : 398 mm
Weight : 3.0 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 55 cc
Max. pressure : 700 bar
Max. output : 6.0 tons / 53.38 kN
※Exchangeable accessory head
(Heads are sold separately)

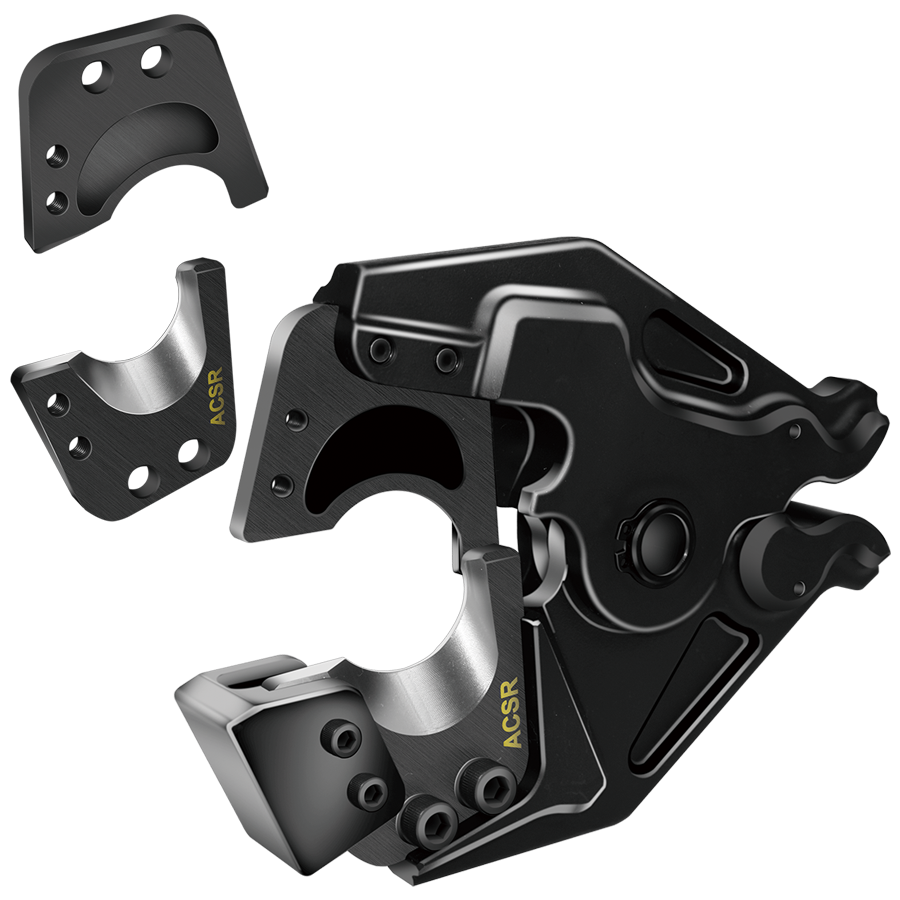

■ IL-ACSR
Cutting Capacity :
● Cuts copper cable up to 500 MCM.
● Cuts aluminum cable up to 500 MCM.
● Cuts up to 556 MCM ACSR cable.
※(Cutting of pianowire is prohibited.)
※Exchangeable Blade.
Weight : 1.3 kgs

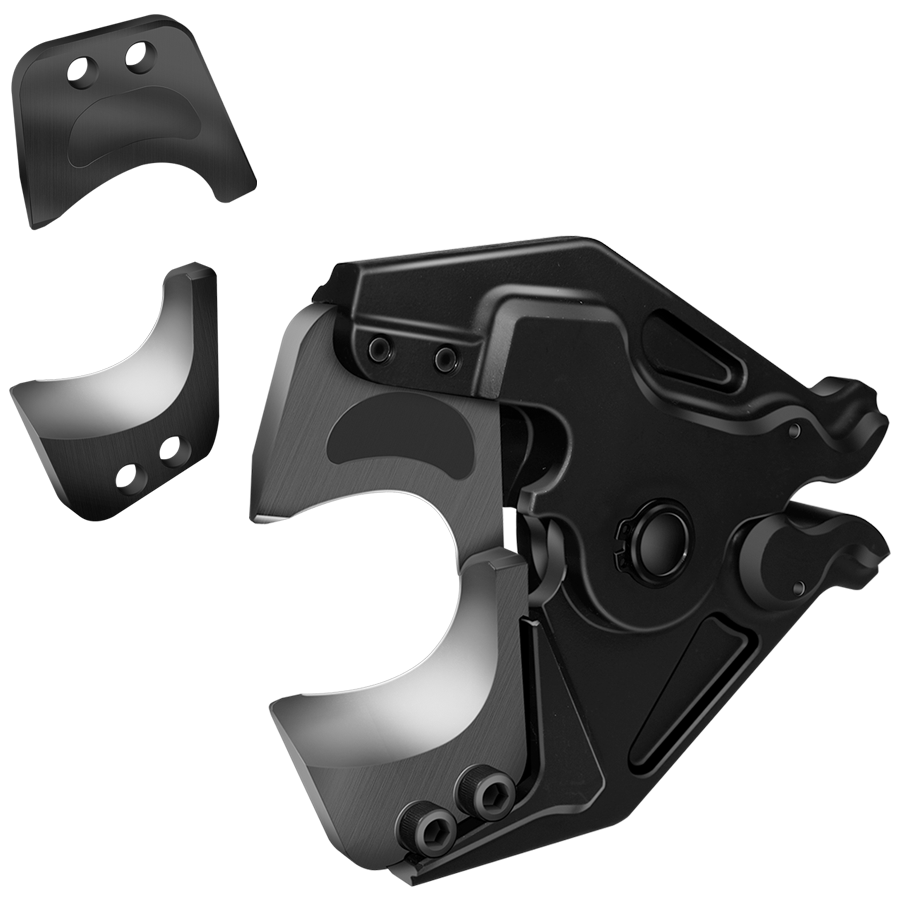

■ IL-CUAL
■ Cutting Capacity :
● Cuts 750 MCM copper cable.
● Cuts 1000 MCM aluminum cable.
※(Cutting of pianowire is prohibited.)
※Exchangeable Blade.
Weight : 1.2 kgs

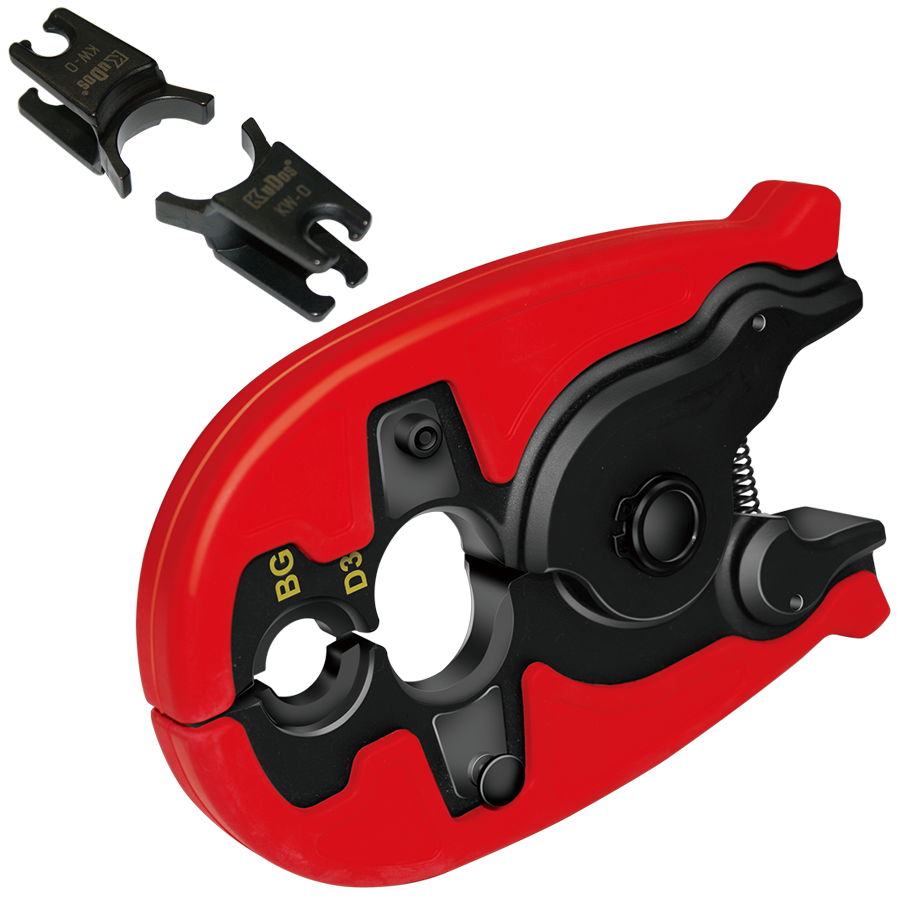

■ IL-BGD3
Application :
● For crimping a wide range of overhead service entrance connections, overhead splices, copperweld, copper & AAC connectors, CU & AL terminals, joint sleeves, full tension deadend and overhead taps.
Weight : 1.1 kgs

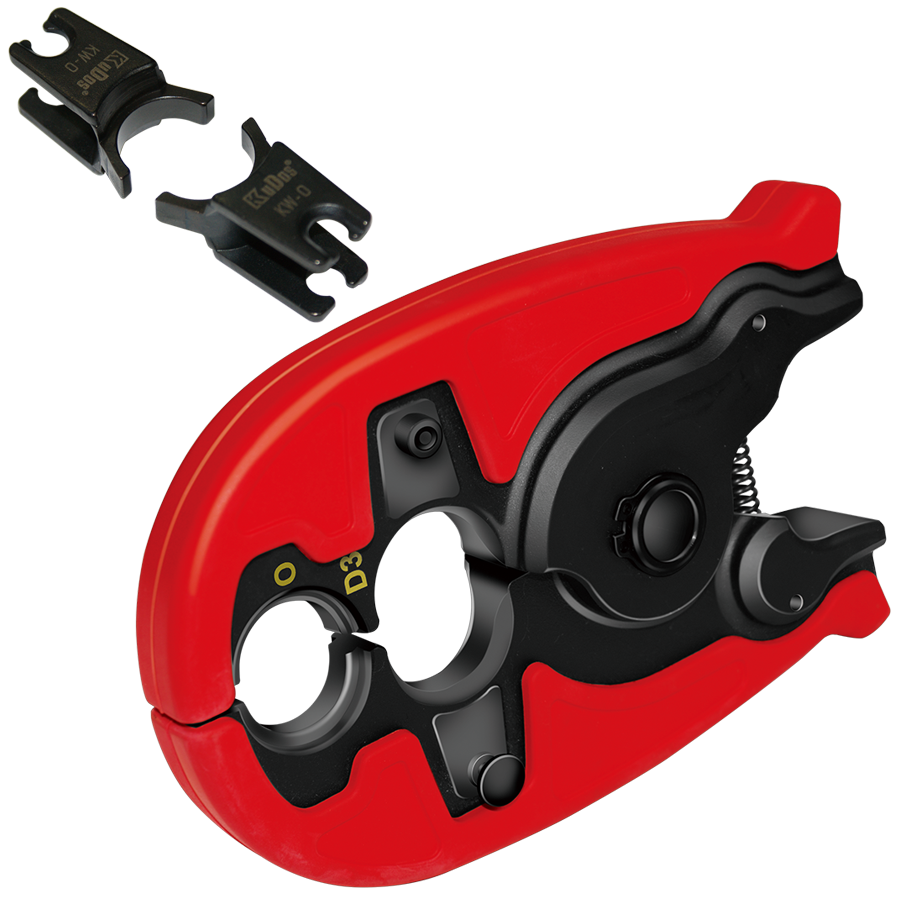

■ IL-OD3
Application :
● For crimping a wide range of overhead service entrance connections, overhead splices, copperweld, copper & AAC connectors, CU & AL terminals, joint sleeves, full tension deadend and overhead taps.
Weight : 1.0 kgs

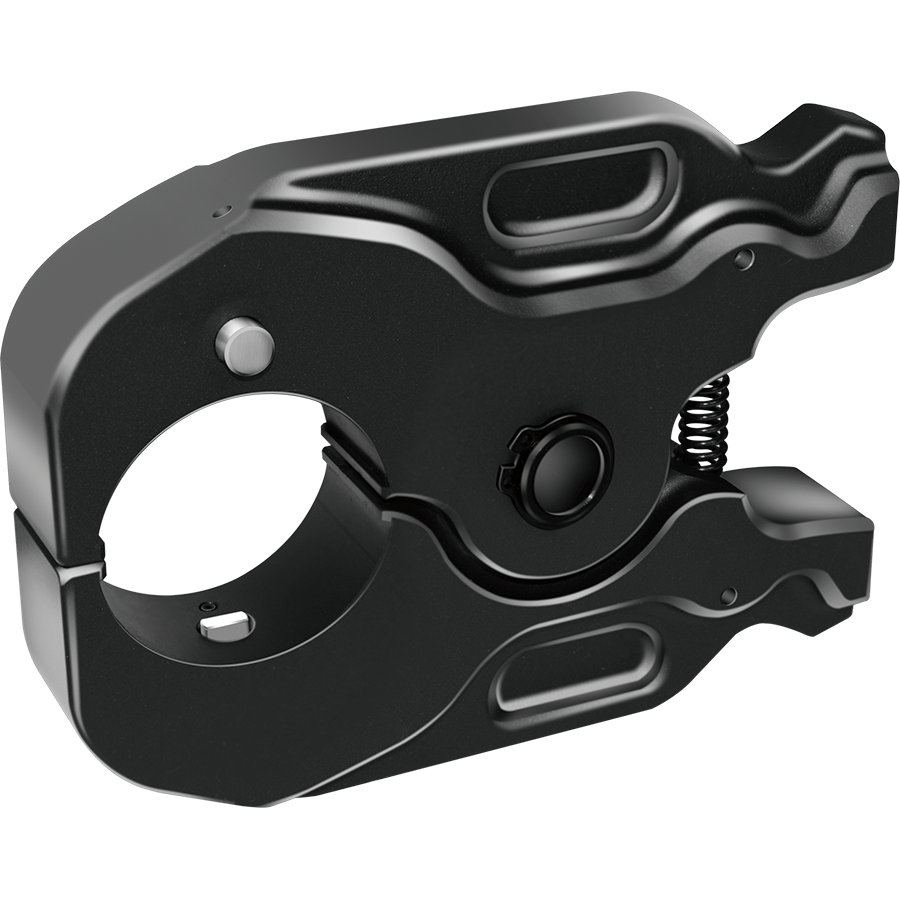

■ IL-6CP
Weight : 1.4 kgs

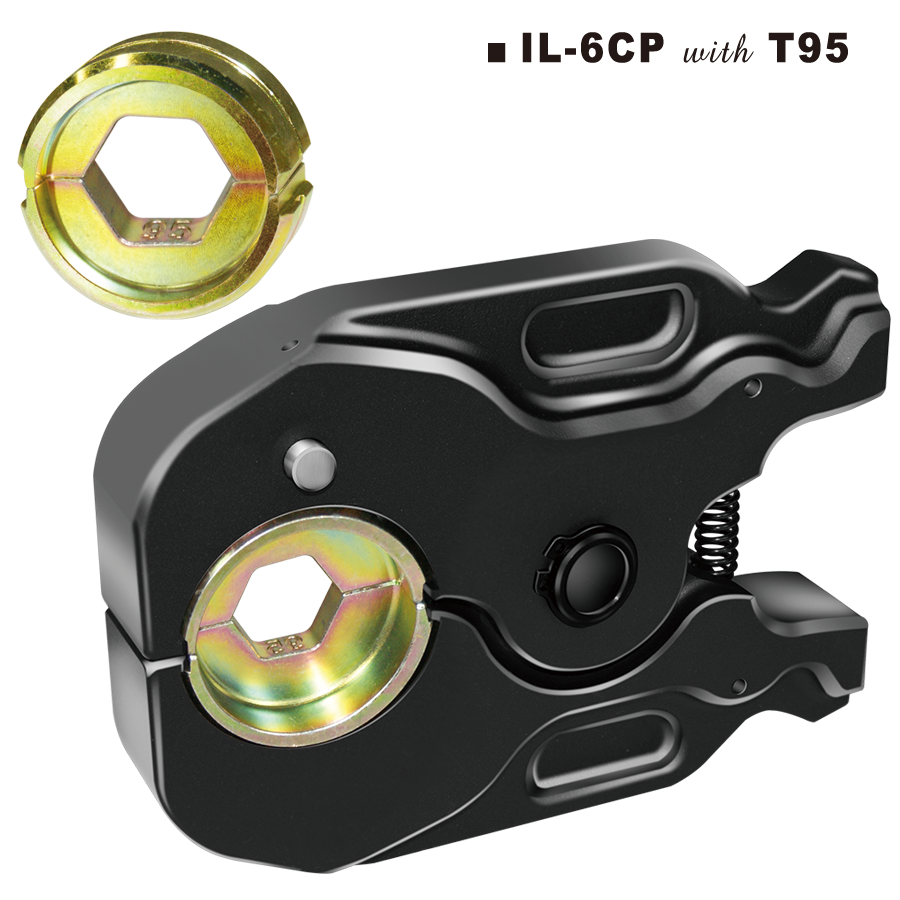

■ T Dies
Crimping Capacity :
● Max. compression : 300 mm2 copper
● Dies sold separately (T16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300)

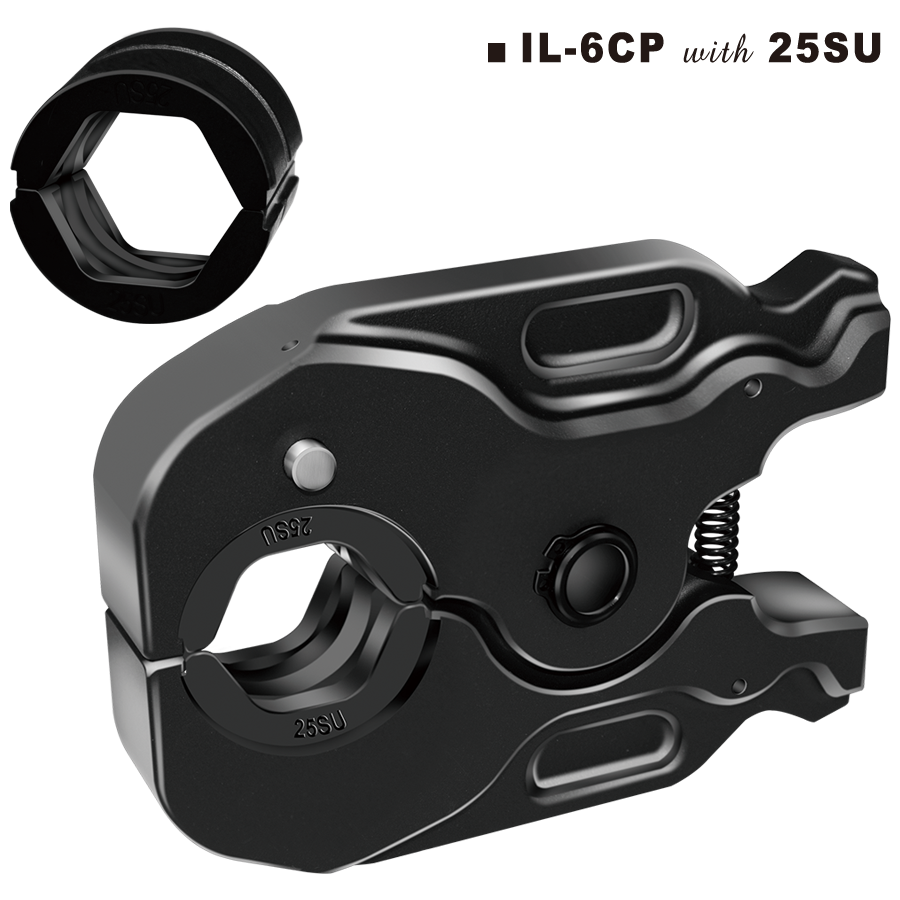

■ SU Dies
Crimping Capacity :
● Dies sold separately
13SU : For 1/2” pipe
20SU : For 3/4” pipe
25SU : For 1” pipe
■ Thread Rod Dies
Cutting Capacity :
● Thread rod cutting adapter : 3/8”-16 UNC
● Suited material : Iron
