Length : 365 mm
Weight : 7.1 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 107 cc
Max output : 14.01 tons / 124.6 kN
■ Cutting capacity :
Wire rope 6x7 : 25 mm
Wire rope 6x12 : 30 mm
Wire rope 6x19 : 30 mm
Soft copper bar : 35 mm
Soft aluminum bar : 28 mm
Soft steel bar : 22 mm
Reinforcing rod : 19 mm
Cu strands : 54 mm
Al strands : 54 mm
ACSR : 54 mm
Guy wire 1x7 : 15 mm
Guy wire 1x19 : 20 mm
Underground cable : 50 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Single action piston/cylinder arrangement
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.
■ Accessories :

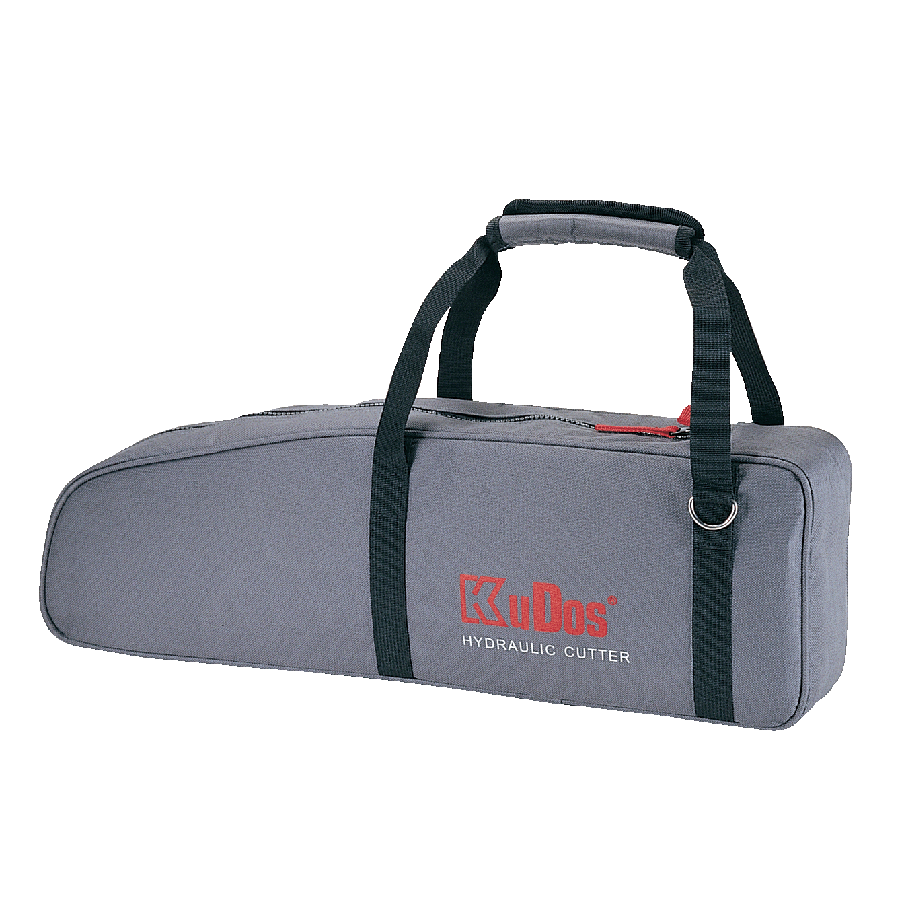

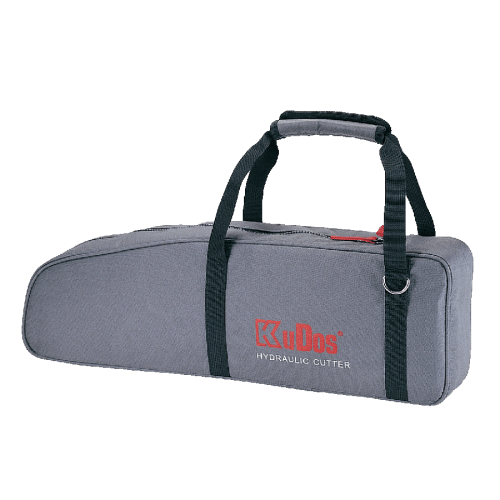

Carrying bag
