 Detail

Length : 580 mm
Weight : 9.1 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 84 cc
Max output : 15.82 tons / 140.7 kN

■ Cutting capacity :
Wire rope 6x7 : 32 mm
Wire rope 6x12 : 32 mm
Wire rope 6x19 : 32 mm
Soft steel bar : 25 mm
Reinforcing rod : 25 mm
Cu strands : 32 mm
Al strands : 32 mm
ACSR : 32 mm
Guy wire 1x7 :32 mm
Guy wire 1X19 : 32 mm
Underground cable : 32 mm

※Cutting of piano wire is prohibited.

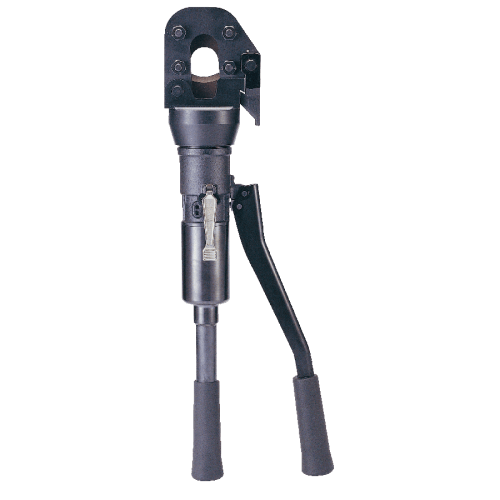

■ Features :
180˚ rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
Two stage pumping action.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.

■ Accessories :

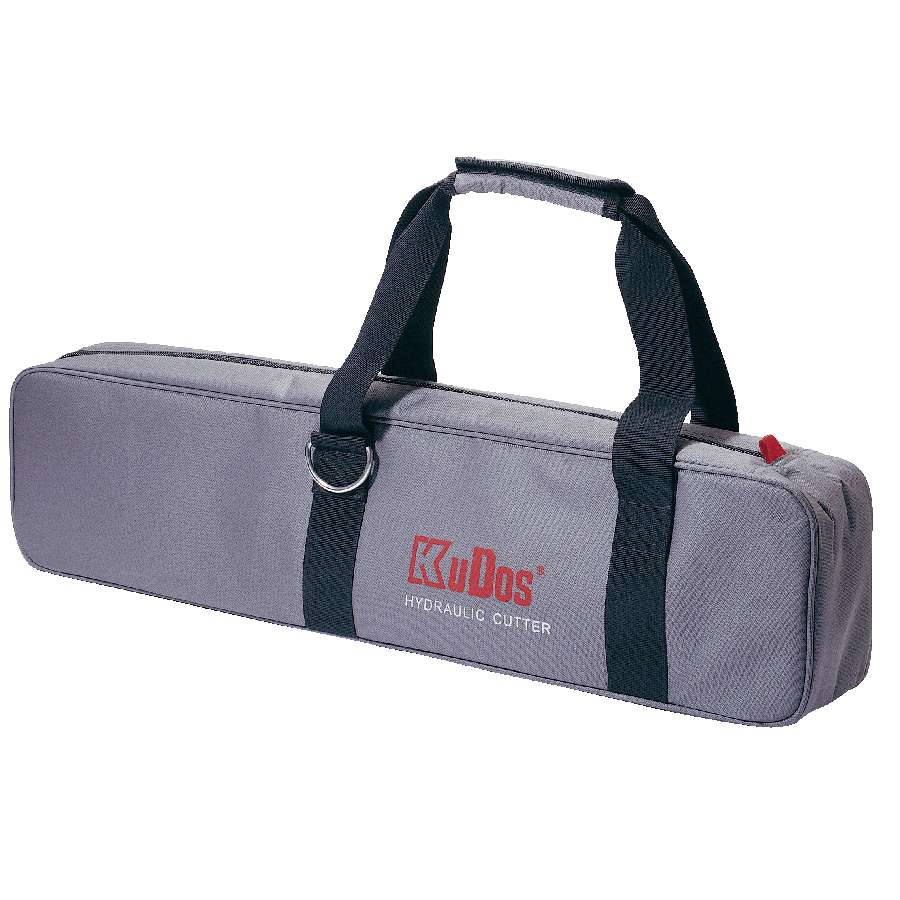

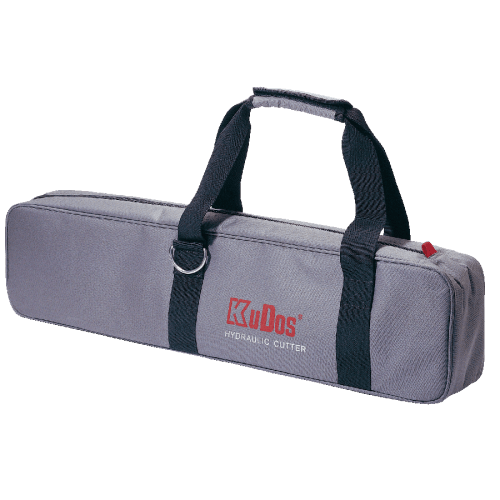

Carrying bag
