Length : 481 mm
Weight : 3.9 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 23 cc
Max output : 8.78 tons / 78.1 kN
■ Cutting capacity :
Cu strands : 28 mm
Al strands : 28 mm
Telephone cable : 30 mm
Underground cable : 30 mm
ACSR : 19 mm
CCP cable : 30 mm
※Cutting of piano wire is prohibited.
■ Features :

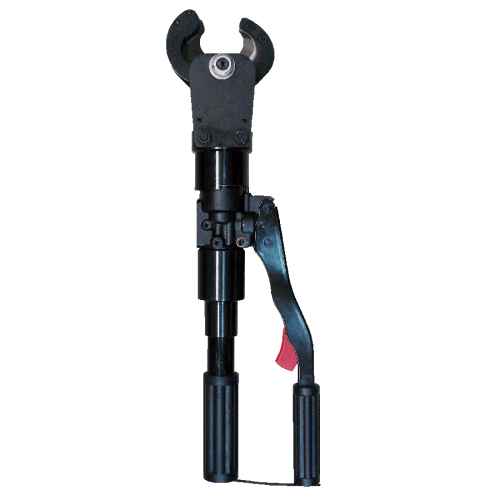

Light weight portable hydraulic cutter features.
Single action cylinder with spring return.
Scissor type cutting for less jamming than shear type cutting.
No set-up time required.
Blades are easily replaceable
180˚ swivel and lock pin type head allows easy cutting position.
■ Accessories :

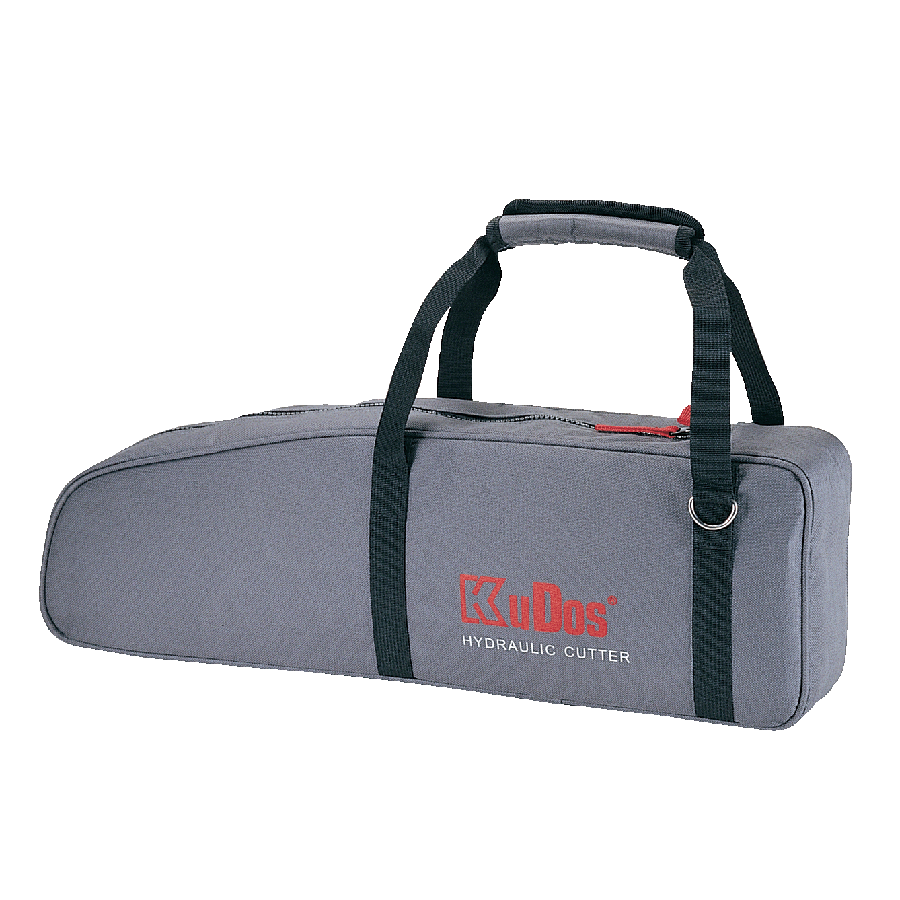

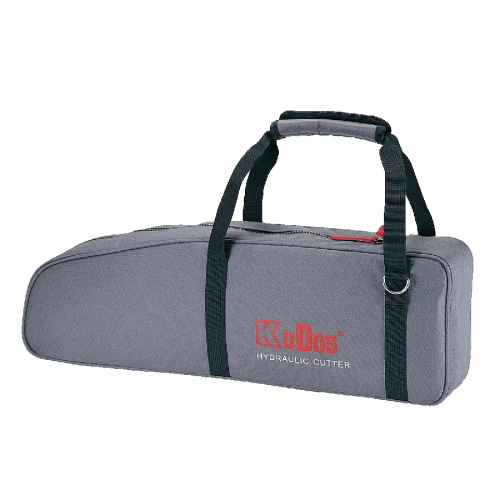

Carrying bag
