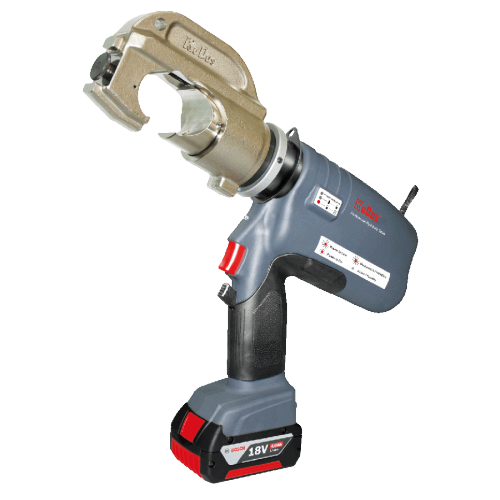

LEC-32T

 Detail

Height : 385 mm
Weight : 6.0 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 120 cc

※Insulated cap should be ordered separately

■ Crimp capacity :
Jaw opening : 32 mm
Crimping force : 14.01 tons / 124.6 kN
Main application : up to 400 mm² CU

※Dies sold separately (CU-16 / 25 / 35 /50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

Accepts all dies used by Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 12 ton U-type dies.
Suitable for terminals with wall thickness little less than DIN 46235 cable lugs.
