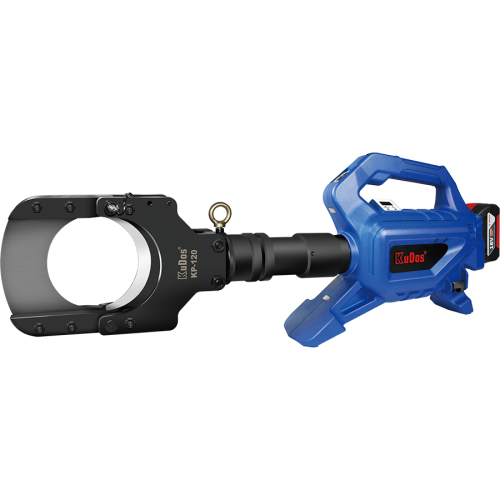

KP-120

 Detail

Length : 753 mm
Weight : 15.0 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 240 cc

■ Cutting capacity :
Max pressure : 700 bar
Max output : 11.77 tons / 104.7 kN
Cu Strands : 50 mm
AI Strands : 60 mm
CCP Cable : 120 mm
Maximum Size : Ø 120 mm

※ Cutting of piano wire is prohibited.

■ Features :

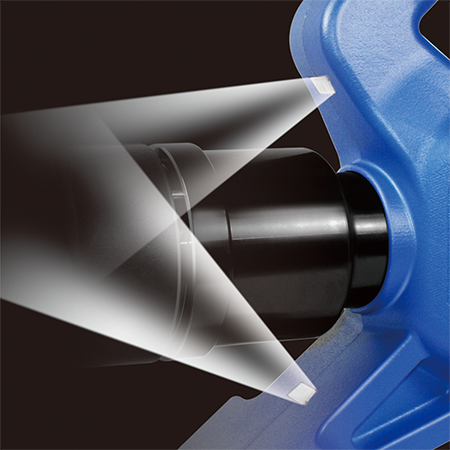

► LED Work Lights
For work area illumination to provide better vision when operating.

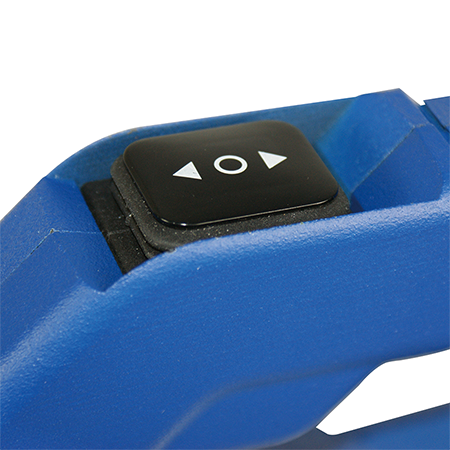

► Operation Button
Switch for piston advance and retract.

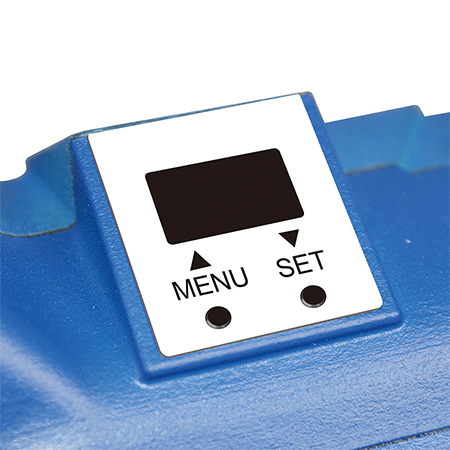

► Display Panel
1. Pressure Indicator.
2. Operation Counter.
3. Auto-retract Setting.
4. Wireless Remote Countrol Setting.
5. Time Setting.
6. Battery Power Indicator.

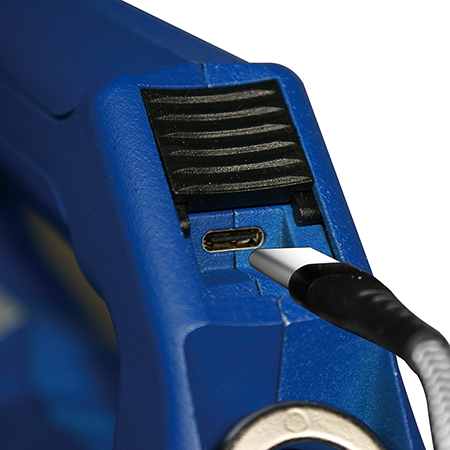

► USB Transmission
Transfer and review operation history.

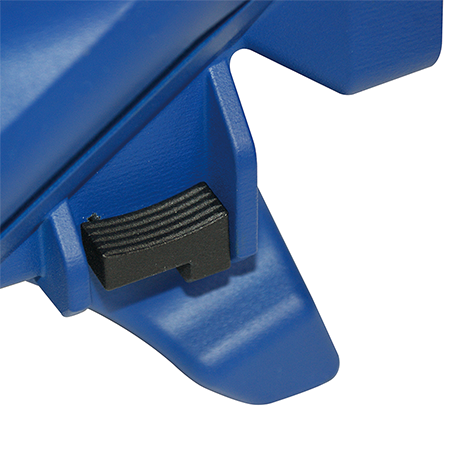

► Emergency Retract Button
Forcibly to retract during emergency situation or when the operation button loses function.

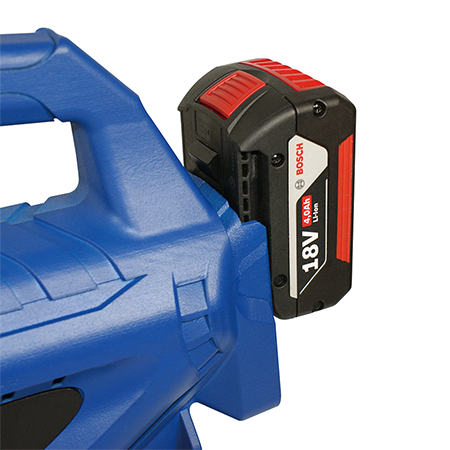

► Battery Seat
Operate with powerful, high-capacity Li-Ion batteries along.
