Detail
Length : 607 mm
Weight : 7.9 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Cutting capacity :
Max pressure : 700 bar
Max output : 8.32 tons / 74.0 kN
Cu strands : 60 mm
Al strands : 60 mm
CCP cable : 65 mm
Underground cable : 65mm (Except armoured cable)
※ Cutting of piano wire is prohibited.
■ Features :
.png)

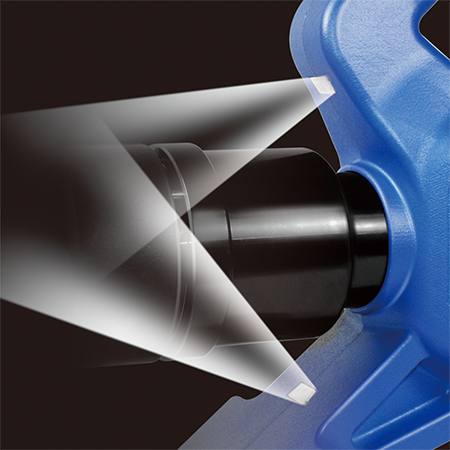

► LED Work Lights
For work area illumination to provide better vision when operating.
.png)

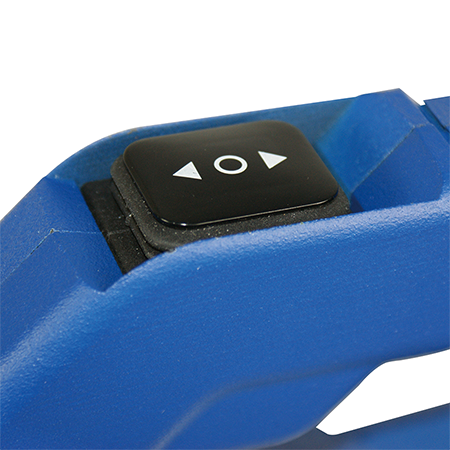

► Operation Button
Switch for piston advance and retract.
.png)

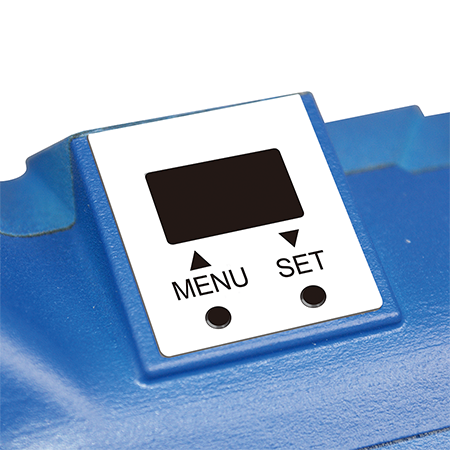

► Display Panel
1. Pressure Indicator.
2. Operation Counter.
3. Auto-retract Setting.
4. Wireless Remote Countrol Setting.
5. Time Setting.
6. Battery Power Indicator.
.png)

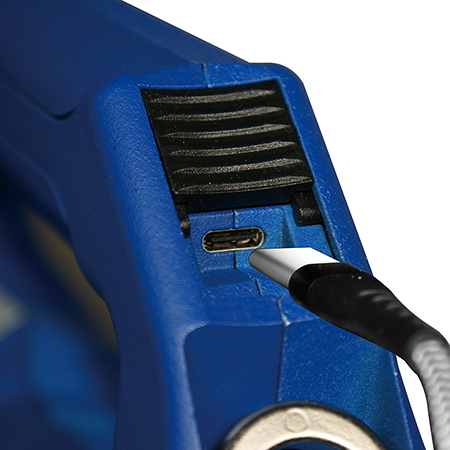

► USB Transmission
Transfer and review operation history.
.png)

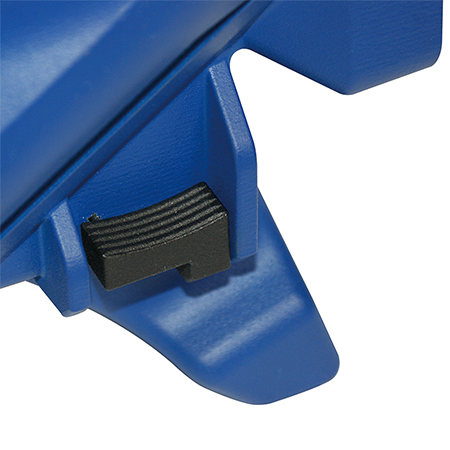

► Emergency Retract Button
Forcibly to retract during emergency situation or when the operation button loses function.
.png)

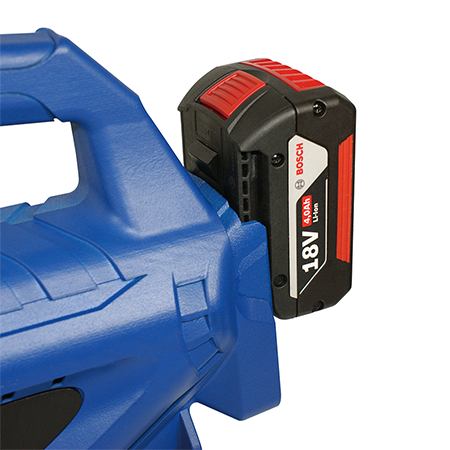

► Battery Seat
Operate with powerful, high-capacity Li-Ion batteries along.
