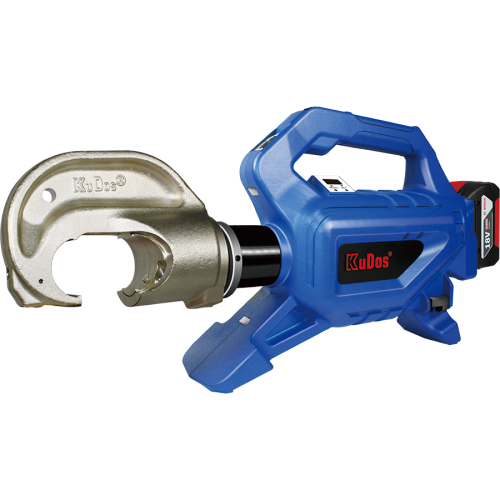

KP-44

 Detail

Length : 492 mm
Weight : 7.8 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc

■ Crimp capacity :
Jaw opening : 44 mm
Max pressure : 700 bar
Crimping force : 14.01 tons / 124.6 kN
Main application : up to 400 mm² CU

※Dies sold separately (CU-16 / 25 / 35 /50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

※Crimping without die sets is prohibited.

■ Features :

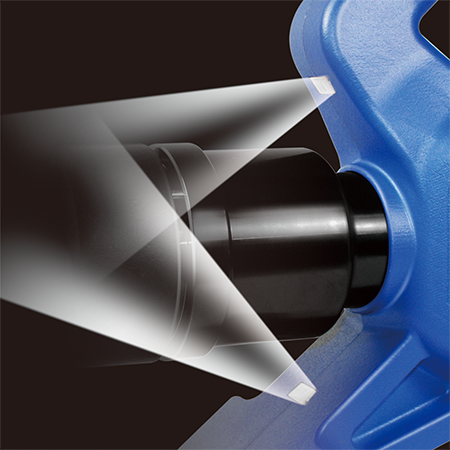

► LED Work Lights
For work area illumination to provide better vision when operating.

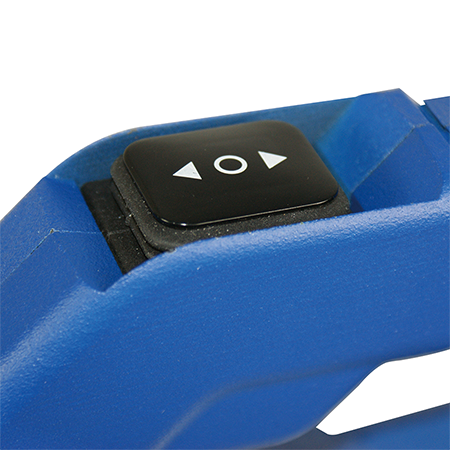

► Operation Button
Switch for piston advance and retract.

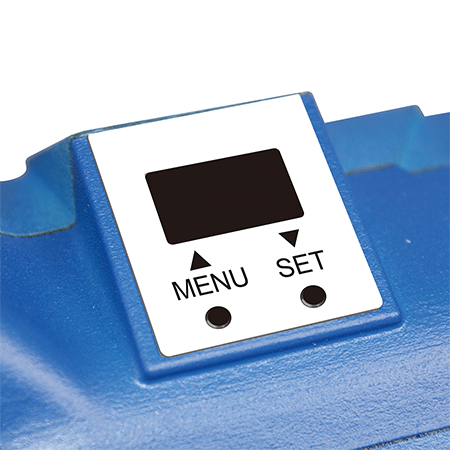

► Display Panel
1. Pressure Indicator.
2. Operation Counter.
3. Auto-retract Setting.
4. Wireless Remote Countrol Setting.
5. Time Setting.
6. Battery Power Indicator.

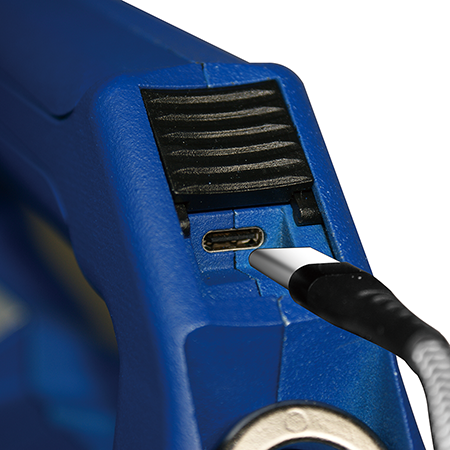

► USB Transmission
Transfer and review operation history.

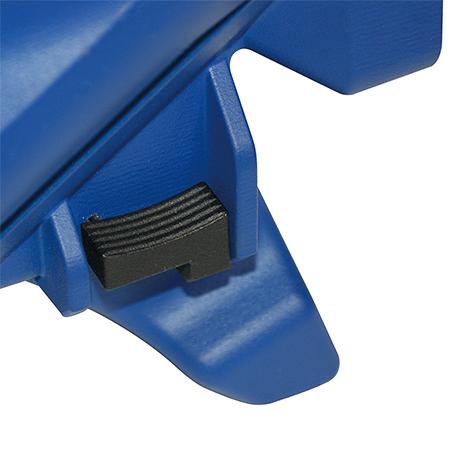

► Emergency Retract Button
Forcibly to retract during emergency situation or when the operation button loses function.

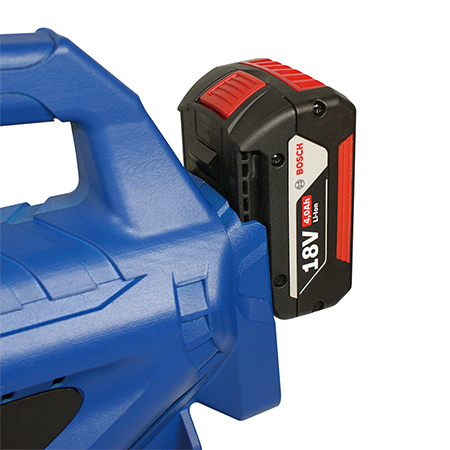

► Battery Seat
Operate with powerful, high-capacity Li-Ion batteries along.
