Detail
Length : 554 mm
Weight : 7.5 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Crimp Capacity :
Jaw opening : 50 mm (45 mm ADP-15THE)
Max pressure : 700 bar
Crimping force : 15.00 tons / 133.5 kN
※Dies sold separately (15THE-CU400 / 500 / 630)
※Crimping without die sets is prohibited.
■ Features :
.png)

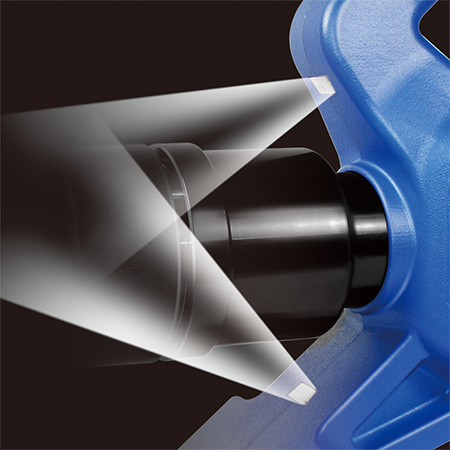

► LED Work Lights
For work area illumination to provide better vision when operating.
.png)

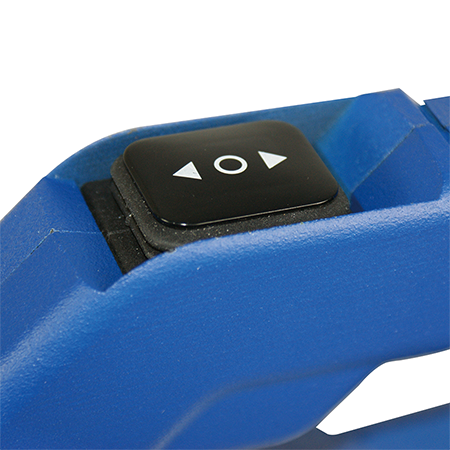

► Operation Button
Switch for piston advance and retract.
.png)

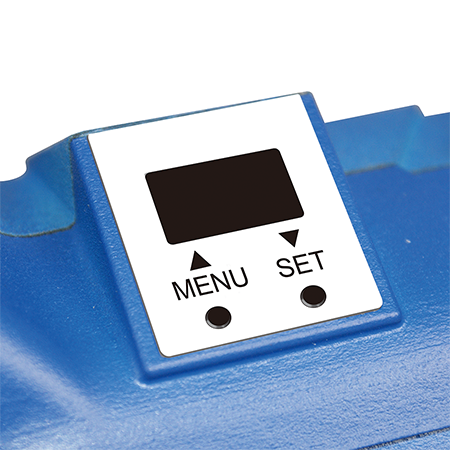

► Display Panel
1. Pressure Indicator.
2. Operation Counter.
3. Auto-retract Setting.
4. Wireless Remote Countrol Setting.
5. Time Setting.
6. Battery Power Indicator.
.png)

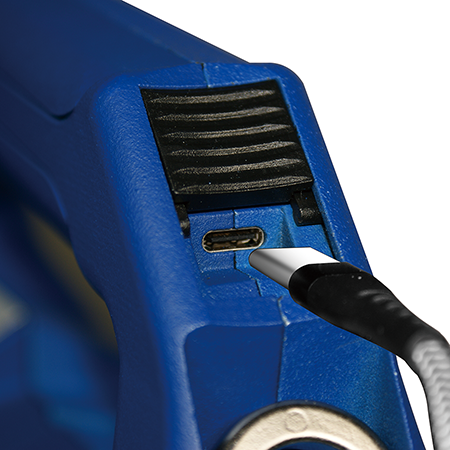

► USB Transmission
Transfer and review operation history.
.png)

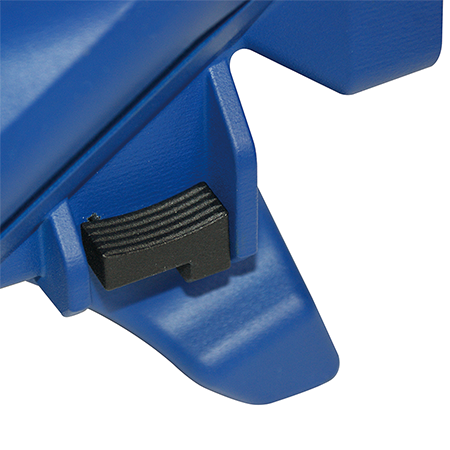

► Emergency Retract Button
Forcibly to retract during emergency situation or when the operation button loses function.
.png)

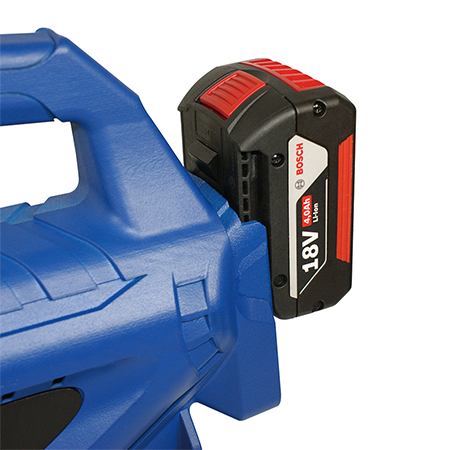

► Battery Seat
Operate with powerful, high-capacity Li-Ion batteries along.
