Detail
Length : 419 mm
Weight : 6.5 kgs (w/o battery)
■ Specifications :

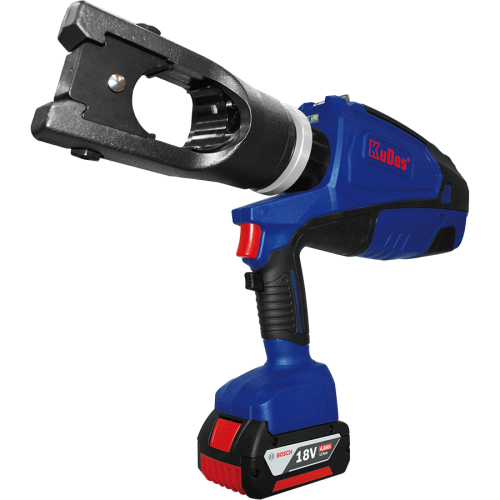

Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 175 cc
■ Crimp capacity :
U-type head
Max pressure : 700 bar
Crimping force : 14.01 tons / 124.6 kN
Main applications :
L.V. lugs & splices : 400 mm²
Insulated terminals : 240 mm²
C sleeve connector : 185 mm²
H.V. lugs & splices : 400 mm²
Al lugs & splices : 300 mm²
※Dies sold separately (CU-16 / 25 / 35 /50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)
