Detail
Length : 515 mm
Weight : 8.9 kgs (w/o battery)
■ Specifications :

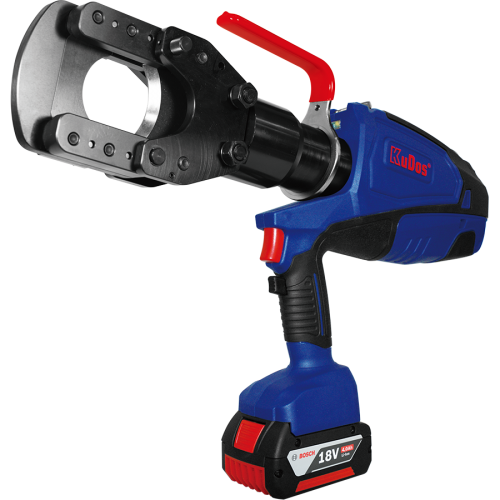

Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Cutting capacity :
Max pressure : 700 bar
Max output : 14.01 tons / 124.6 kN
Wire rope 6x7 : 25 mm
Wire rope 6x12 : 30 mm
Wire rope 6x19 : 30 mm
Soft copper bar : 35 mm
Soft aluminum bar : 28 mm
Soft steel bar : 22 mm
Reinforcing rod : 19 mm
Cu strands : 54 mm
Al strands : 54 mm
ACSR : 54 mm
Guy wire 1x7 : 15 mm
Guy wire 1x19 : 20 mm
Underground cable : 50 mm
※Cutting of piano wire is prohibited.
