Detail
Length : 385 mm
Weight : 5.4 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Function :
KV-45X can be applied with different functional adapters as cable cutter, sleeve & lug crimper and compatibility heads.
Max pressure : 700 bar
Max output : 14.01 tons / 124.6 kN
Ram stroke : 45 mm
※ 5 adapter heads are sold separately.

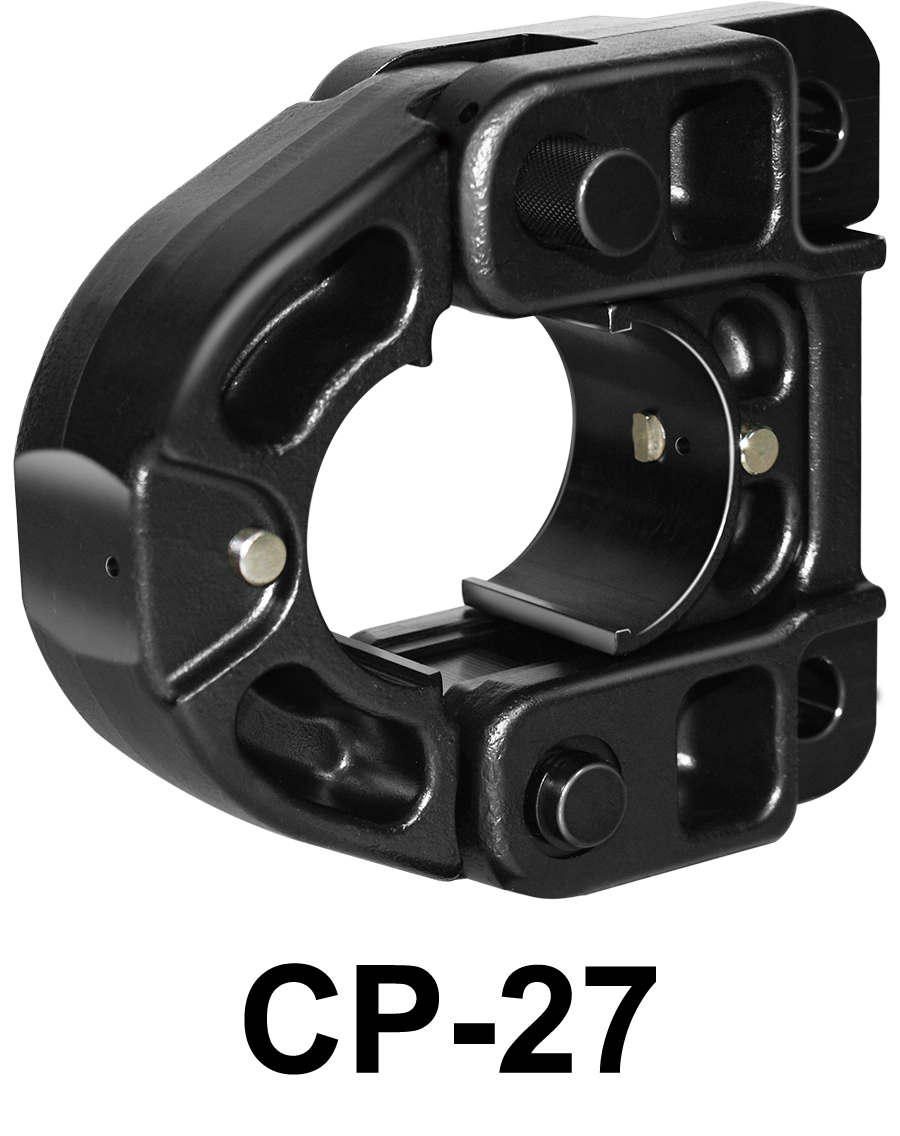

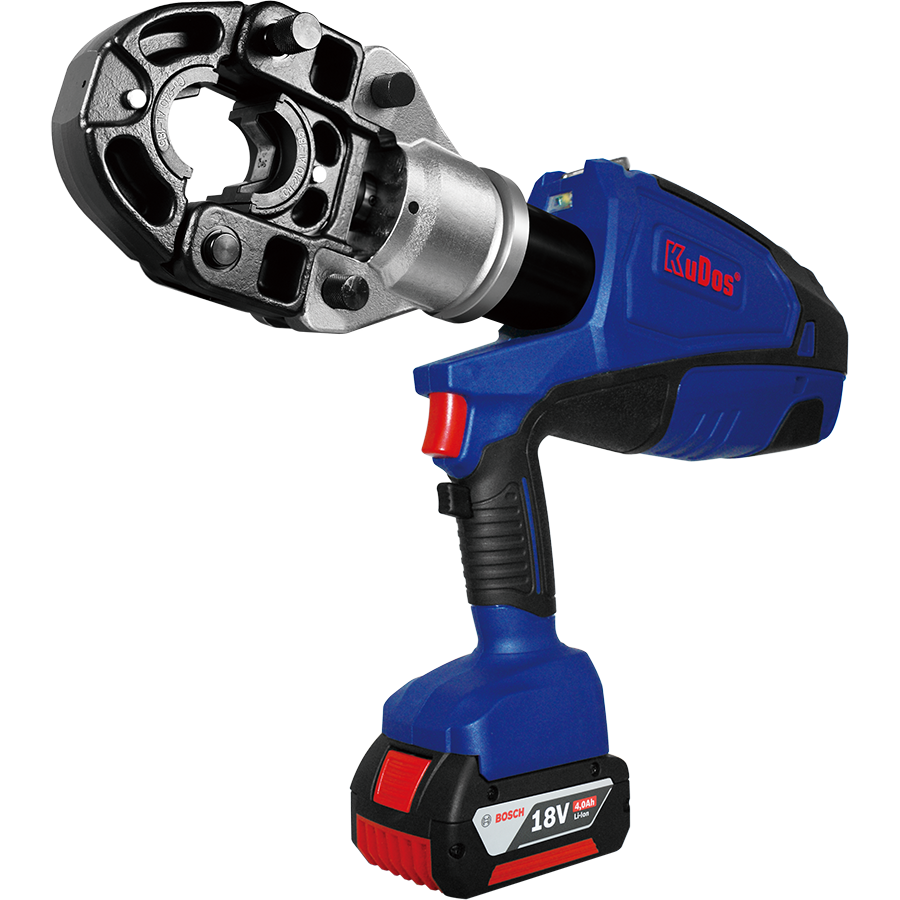

| KV-45X with CP-27 (Crimping Head Adapter) |

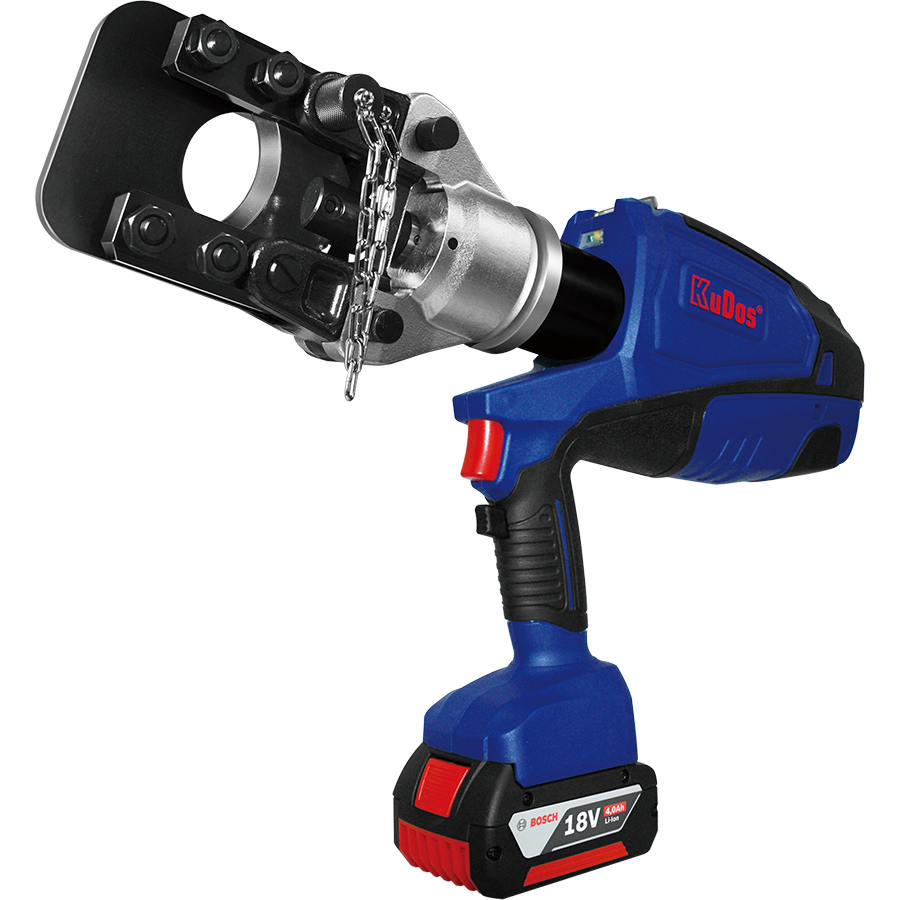

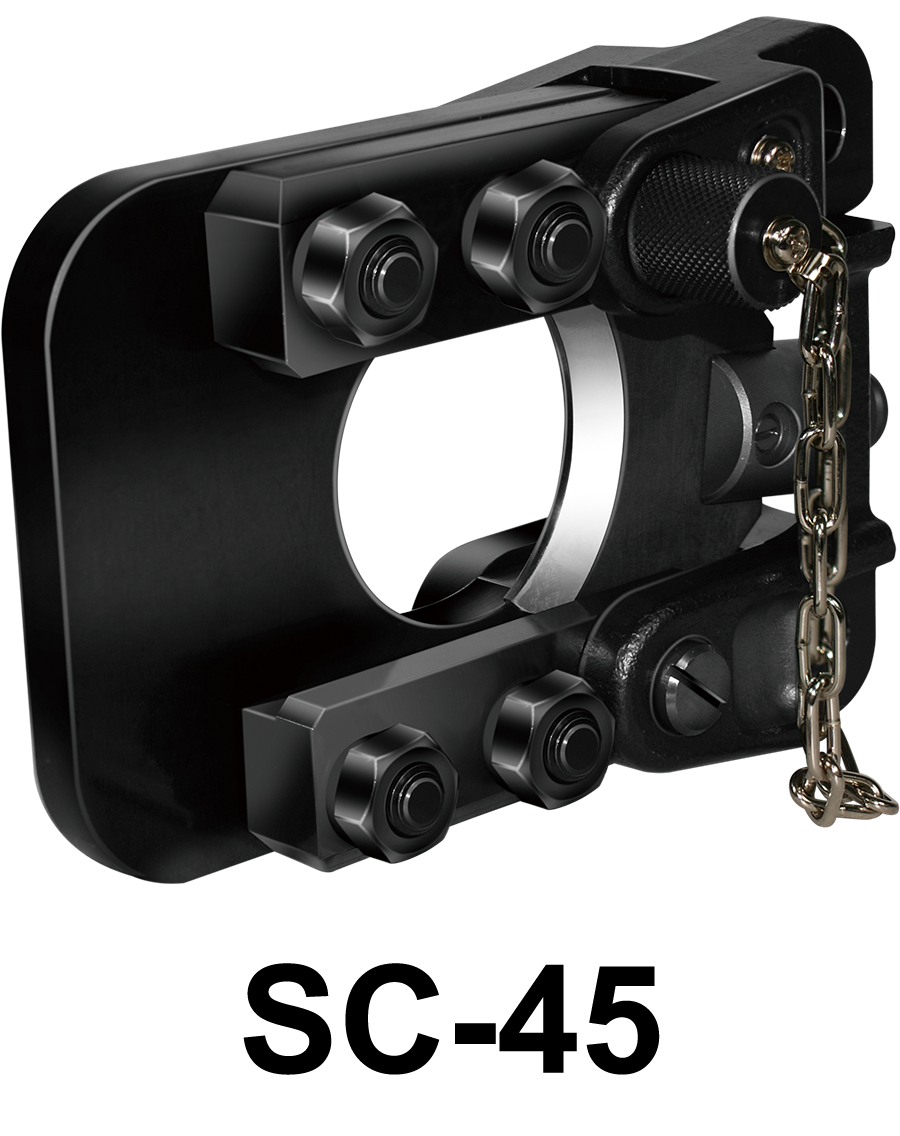

KV-45X with SC-45 (Cable Cutter Head Adapter) |
.png) .png) |
.png)  |
Main application : up to 400 mm² CU Die Sold Separately : (CU-16/25/35/50/70/95/120/150/185/240/300/400) ※Accept all 12 tons die sets. ■ Hex Dies for Copper Lugs Accepts all dies used by Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 12 ton U-type and hex-type dies. Suitable for terminals with the standard of DIN46235 |
Cutting Capacity : ACSR : 40 mm Copper : 45 mm |

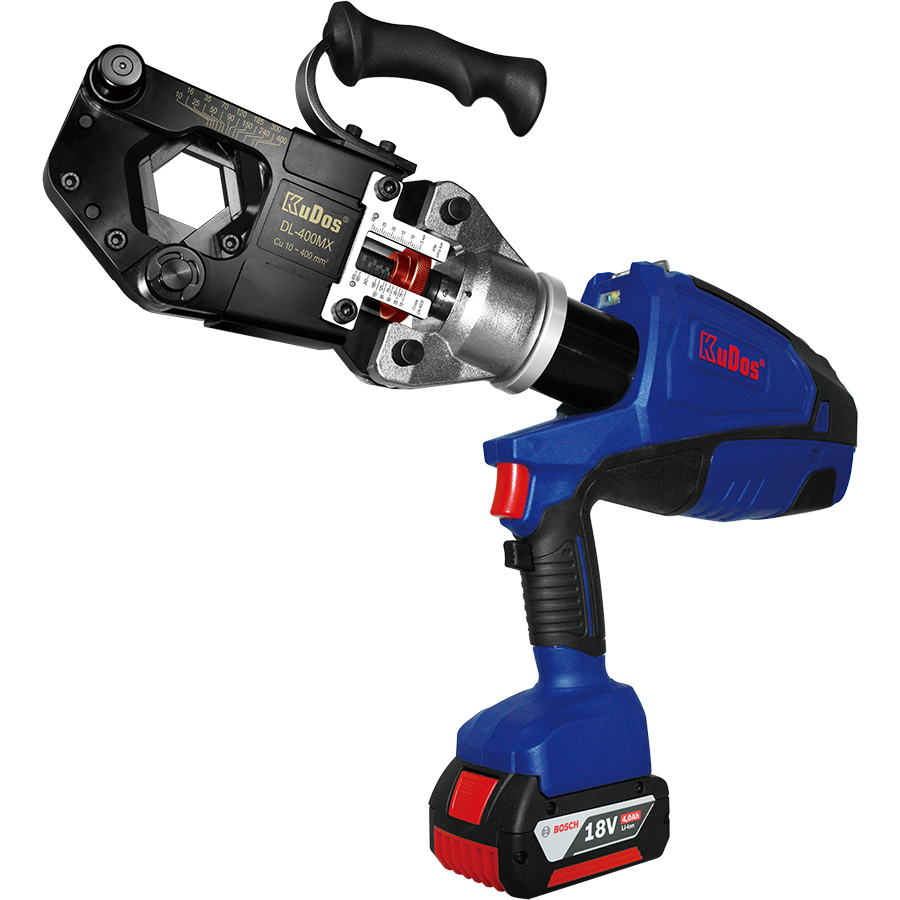

| KV-45X with DL-400MX (Die-less Hex Crimping Head Adapter) |

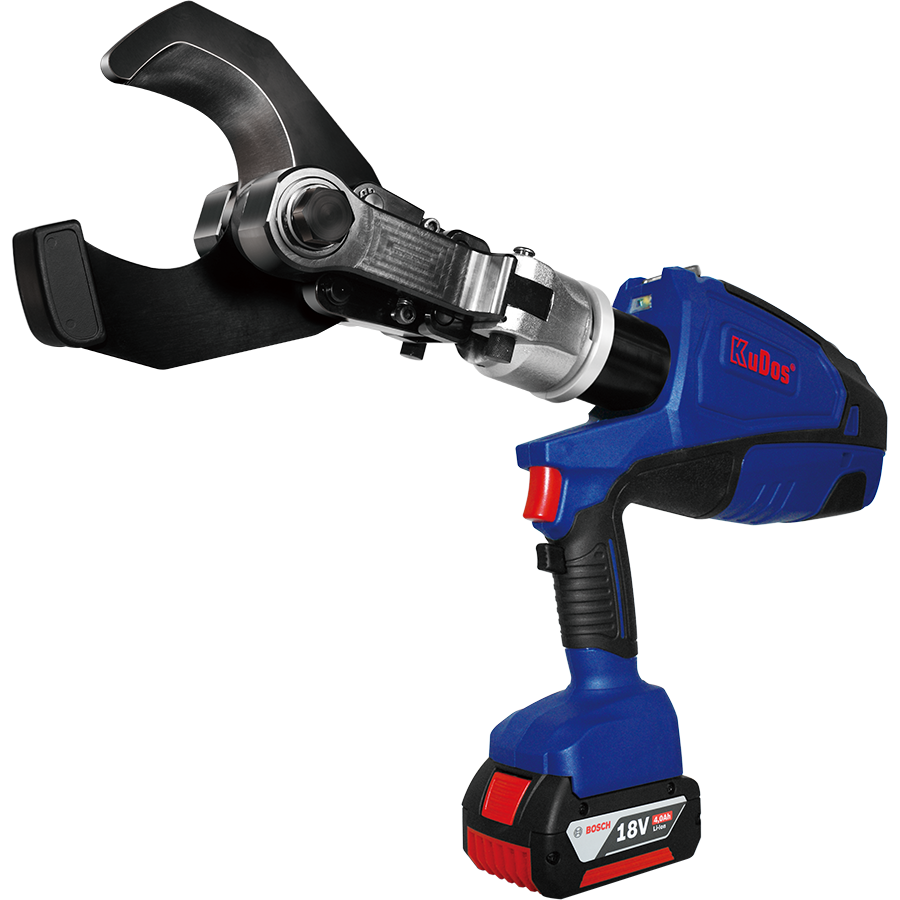

KV-45X with 65YC (Cable Cutter Head Adapter) |
.png)  |
.png)  |
Crimping Capacity : 10 ~ 400 mm² Crimping Witdh : 10 mm Suitable Material : Multi-Core XLPE、 XLPE、Terminals And Tubs For CU And AL Cables、Coaxial Cable Suitable for terminals with the standard of DIN46235 |
Cutting Capacity : Cu Strands : 60 mm Al Strands : 60 mm CCP Cable : 65 mm Underground Cable : 65 mm (Except Armoured Cable) |

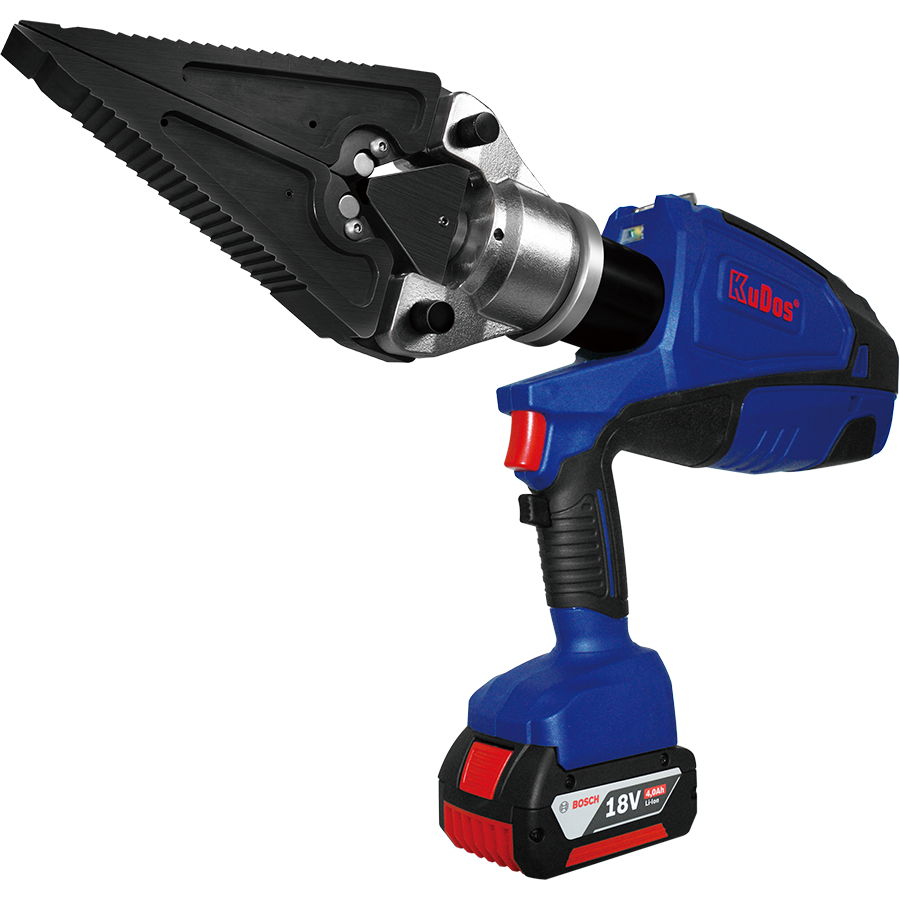

| KV-45X with SW150 (Spreader Adapter) |
|
.png)  |
|
Spreasing Range : 5 mm ~ 150 mm Spreading Force 6 Ton |
