Length : 639 mm
Weight : 8.7 kgs
■ Specifications :
Max. pressure : 700 bar
Oil required : 400 cc
■ Oil delivery :
10.3 cc / stroke at low pressure
1.8 cc / stroke at high pressure
■ Features :
Fixed pressure pump.
Twin outputs by fixed pressure at 700 bar and both ports at same time.

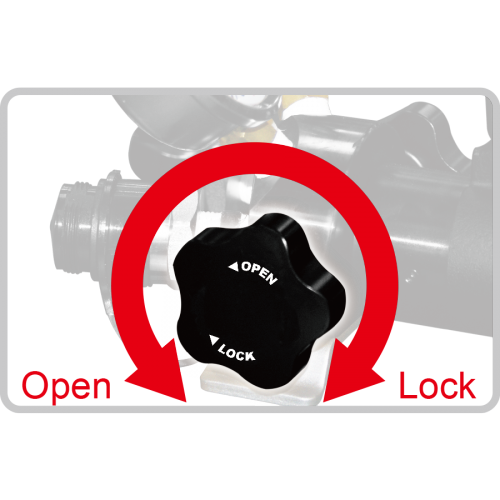

For single port usage only depressurise on system open the control valve set by rotating one side release knob.
Dual speed pump piston for rapid advance.
Two stage pumping action.
External adjustable pressure setting up to 700 bar.
Internal oil bladder type oil reservoir allows operation in any position.
Economical yet dependable hydraulic hand pump.
■ Accessories :

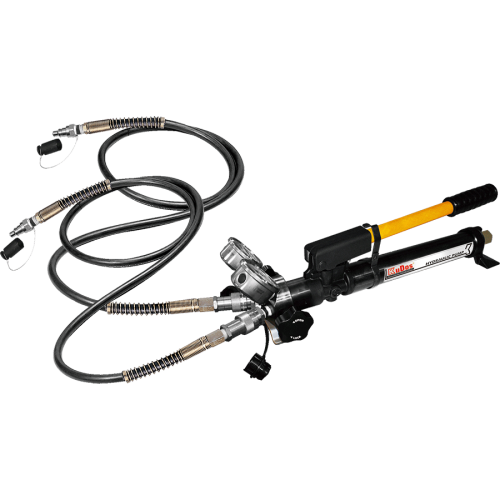

2M hydraulic hose attached
