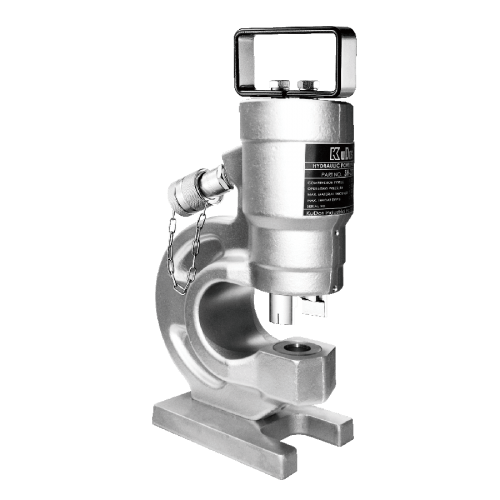

Detail
Height : 371 mm
Weight : 14.5 kgs
■ Specifications :
Throat Depth : 70 mm
Max. Pressure : 700 bar
Oil Required : 116 cc
Max. Output : 34.20 tons / 304.3 kN
■ Punching capacity
Max. Thickness :
Steel Plate : ≦15 mm
Copper Plate : ≦20 mm
Aluminum Plate : ≦20 mm
Max. Diameter : 20.5 mm
20.5 mm diameter hole with 13 mm thick mild steel.
For angle iron, plates, beams and bus bars.
■ Features :
C-Head made by forging for greater strength.
Convenient handle for easy carrying.
Base stand for easy positioning and accurate punching.
Single action piston / cylinder arrangement reduces iron chippings.

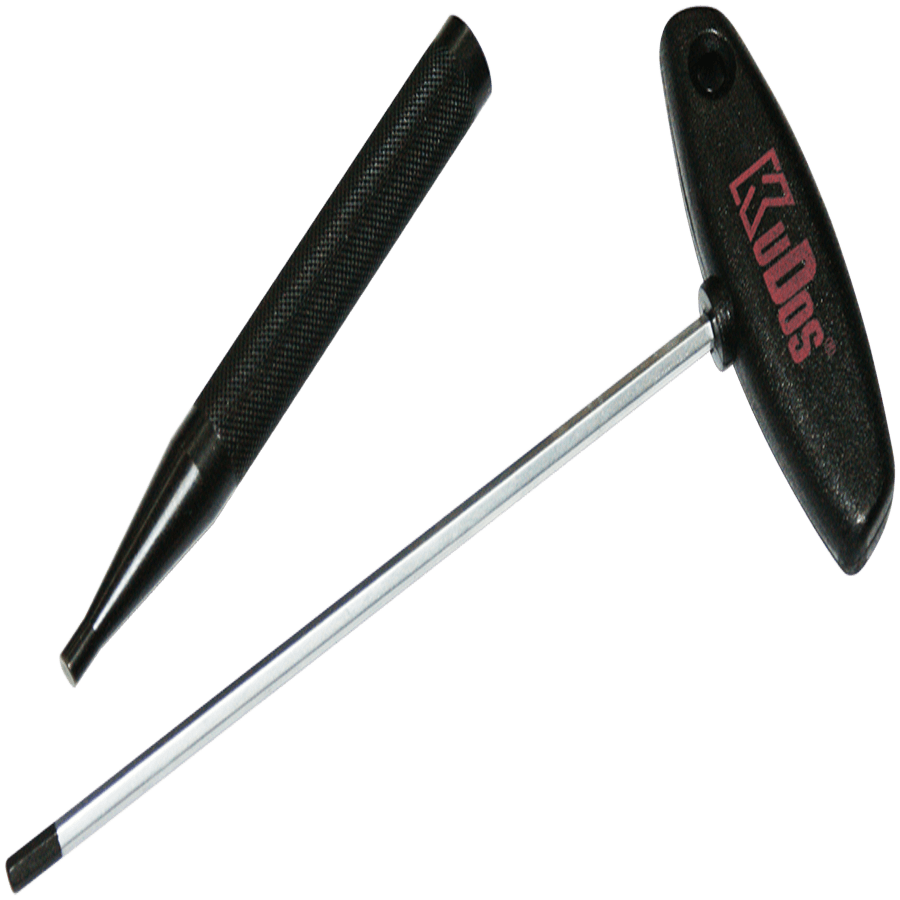

Punch and die changeover tools included.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Efficient and safe to use.
■ Accessories :
Round Punching Dies for mild steel (10.5, 13.5, 17.5, 20.5 mm)
Plastic carrying case
■ Other punching die option :
Copper plate punching dies : 10.5, 13.5, 17.5, 20.5

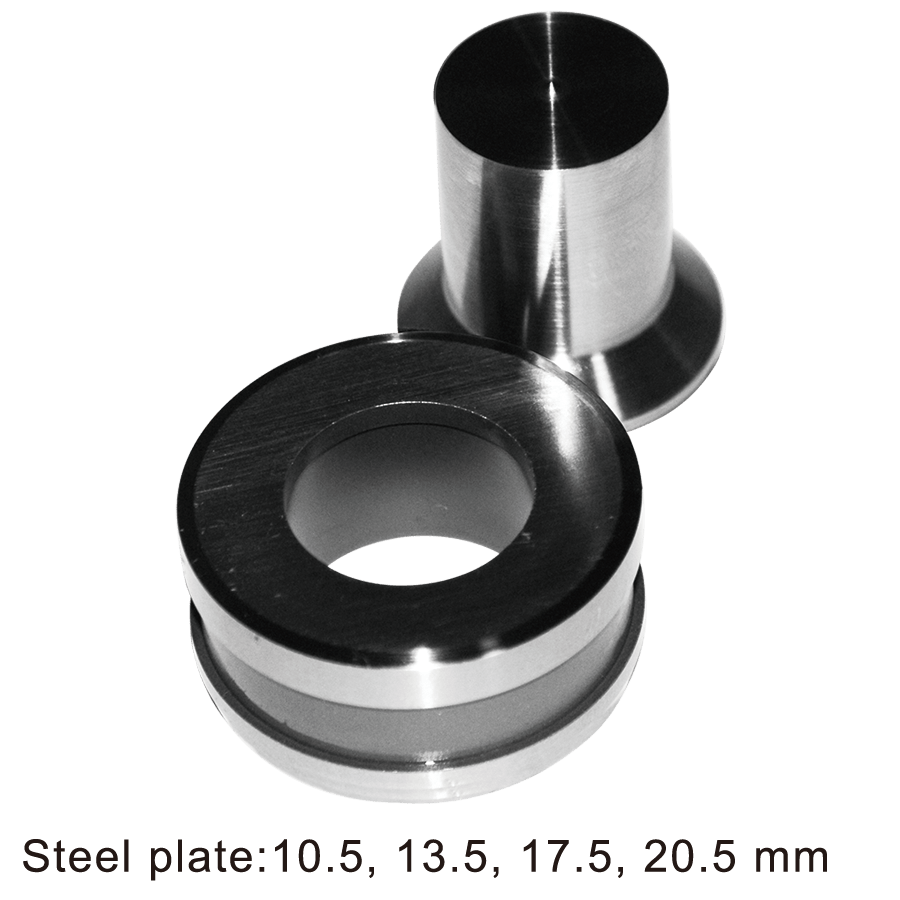

Steel plate punching dies : 10.5, 13.5, 17.5, 20.5
