Detail
Length : 364 mm
Weight : 32.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 318 cc
Max. Output : 110.82 tons / 985.9 Kn
Ram Stroke : 22 mm
■ Crimping Capacity :
Crimping range :
Copper : up to 64 mm O.D.sleeve
Aluminum : up to 71 mm O.D.sleeve
Steel : up to 32 mm O.D.sleeve
※Switchable/Double-Acting hydraulic pump are available.
※Dies are manufactured on request only
■ Features :
Operated by Switchable double-acting hydraulic pump with rated oil pressure of 700 bar(10,000 psi).
Functional handles for easy carrying and repositioning.
Removable die cap for easy connector positioning.
Ram retracts hydraulically; the ram retracting time is 1/3 of spring return.

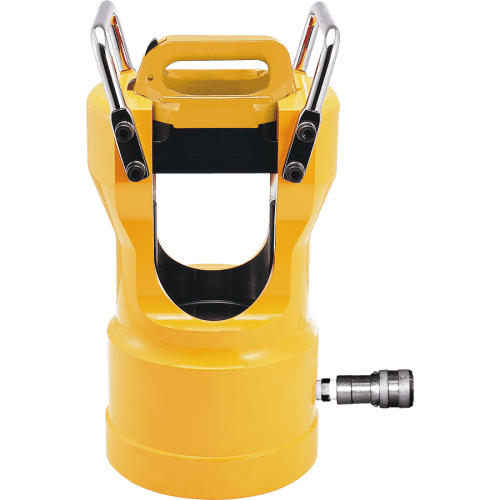

Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and / or maintenance work.
