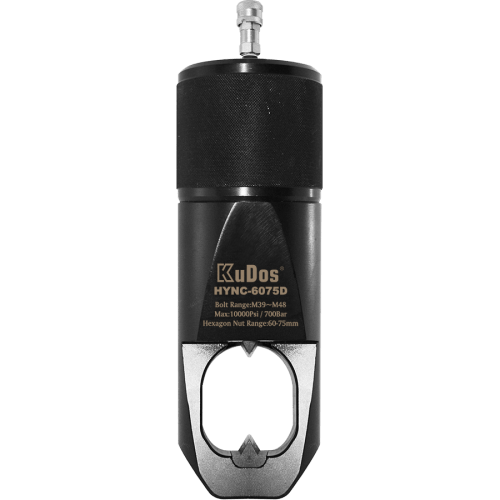

HYNC-series (Double blade)
■ Features :
Compact design.
Easy to use.
Seven models of nut splitter to choose from.
Unique angled head design for a variety of applications.
Single action cylinder with hydraulic advance with spring-return.
Operated by hydraulic pump with rated oil pressure of 700 bar(10,000psi).
■ Specifications : Double blade
| Model No | Bolt Range | Hex Nut Range (mm) | Capacity (ton) | Oil Capacity(cm³) | Dimensions(mm) | Net Weight(kg) | Gross Weight(kg) | ||
| Length | Width | Height | |||||||
| HYNC-1319D | M6-M12 | 10-19 | 6.23 | 15 | 223 | 44 | 67 | 1.3 | 2.8 |
| HYNC-1924D | M12-M16 | 19-24 | 11.77 | 20 | 250 | 56 | 74 | 2.4 | 3.8 |
| HYNC-2432D | M16-M22 | 24-32 | 19.07 | 60 | 275 | 64 | 78 | 3.5 | 5.4 |
| HYNC-3241D | M22-M27 | 32-41 | 26.49 | 80 | 305 | 77 | 90 | 5.1 | 7.2 |
| HYNC-4150D | M27-M33 | 41-50 | 38.92 | 155 | 344 | 97 | 111 | 9.7 | 13.8 |
| HYNC-5060D | M33-M39 | 50-60 | 56.04 | 240 | 386 | 115 | 131 | 14.7 | 18.6 |
| HYNC-6075D | M39-M48 | 60-75 | 102.76 | 492 | 476 | 170 | 186 | 40.7 | 42.9 |

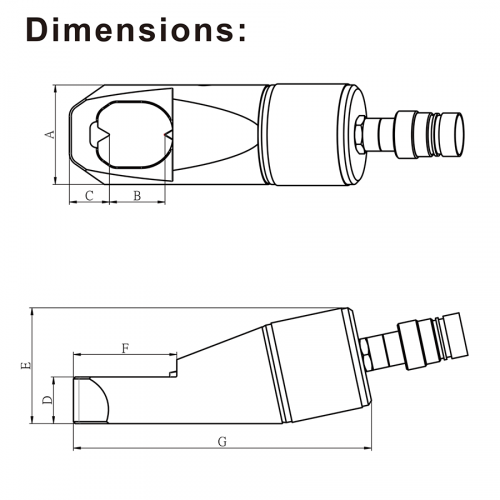

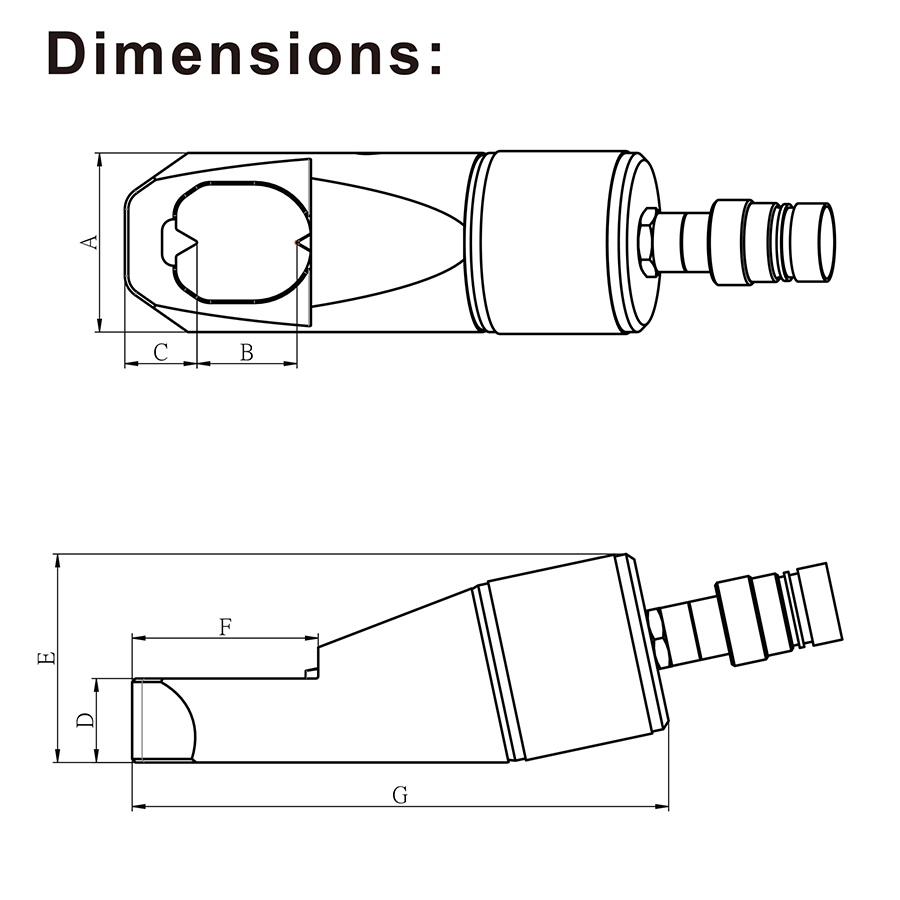

| Model No | A | B | C | D | E | F | G | Spare Chisels No. | ||
| HYNC-1319D | 40 | 21 | 18 | 19 | 53 | 41 | 139 | HYNC-1319D#7、#10 | Chisels | |
| HYNC-1924D | 54 | 26 | 22 | 25 | 66 | 50 | 168 | HYNC-1924D#7、#10 | Chisels | |
| HYNC-2432D | 64 | 34 | 26 | 30 | 78 | 65 | 198 | HYNC-2432D#7、#10 | Chisels | |
| HYNC-3241D | 77 | 43 | 31 | 36 | 90 | 80 | 231 | HYNC-3241D#7、#10 | Chisels | |
| HYNC-4150D | 94 | 52 | 39 | 45 | 111 | 93 | 271 | HYNC-4150D#7、#10 | Chisels | |
| HYNC-5060D | 106 | 62 | 43 | 54 | 131 | 107 | 315 | HYNC-5060D#7、#10 | Chisels | |
| HYNC-6075D | 156 | 77 | 54 | 75 | 186 | 133 | 411 | HYNC-6075D#7、#10 | Chisels | |
※Caution :
Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.
■ Accessories :
| Model No. | Hex Wench(mm) | Packaging |
| HYNC-1319D | 2.5 & 4 | KuDos ® Plastic Carrying Case |
| HYNC-1924D | 3 & 5 | |
| HYNC-2432D | 4 & 6 | |
| HYNC-3241D | 4 & 6 | |
| HYNC-4150D | 4 & 6 | |
| HYNC-5060D | 5 & 6 | |
| HYNC-6075D | 5 & 6 | Crate |
