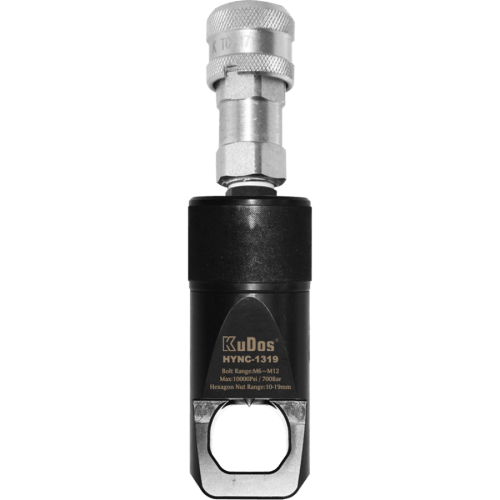

HYNC-series (Single blade)
■ Features :
Compact design.
Easy to use.
Seven models of nut splitter to choose from.
Unique angled head design for a variety of applications.
Single action cylinder with hydraulic advance with spring-return.
Operated by hydraulic pump with rated oil pressure of 700 bar(10,000psi).
■ Specifications : Single blade type
| Model No | Bolt Range | Hex Nut Range (mm) | Capacity (ton) | Oil Capacity(cm³) | Dimensions(mm) | Net Weight(kg) | Gross Weight(kg) | ||
| Length | Width | Height | |||||||
| HYNC-1319 | M6-M12 | 10-19 | 6.23 | 15 | 170 | 40 | 48 | 1.2 | 2.6 |
| HYNC-1924 | M12-M16 | 19-24 | 11.24 | 20 | 191 | 54 | 62 | 2.0 | 3.6 |
| HYNC-2432 | M16-M22 | 24-32 | 18.39 | 60 | 222 | 64 | 72 | 3.0 | 5.2 |
| HYNC-3241 | M22-M27 | 32-41 | 25.69 | 80 | 244 | 75 | 88 | 4.4 | 7.0 |
| HYNC-4150 | M27-M33 | 41-50 | 38.92 | 155 | 288 | 94 | 105 | 8.2 | 13.6 |
| HYNC-5060 | M33-M39 | 50-60 | 54.88 | 240 | 318 | 106 | 128 | 11.8 | 18.4 |
| HYNC-6075 | M39-M48 | 60-75 | 102.76 | 492 | 393 | 156 | 181 | 34.1 | 42.7 |

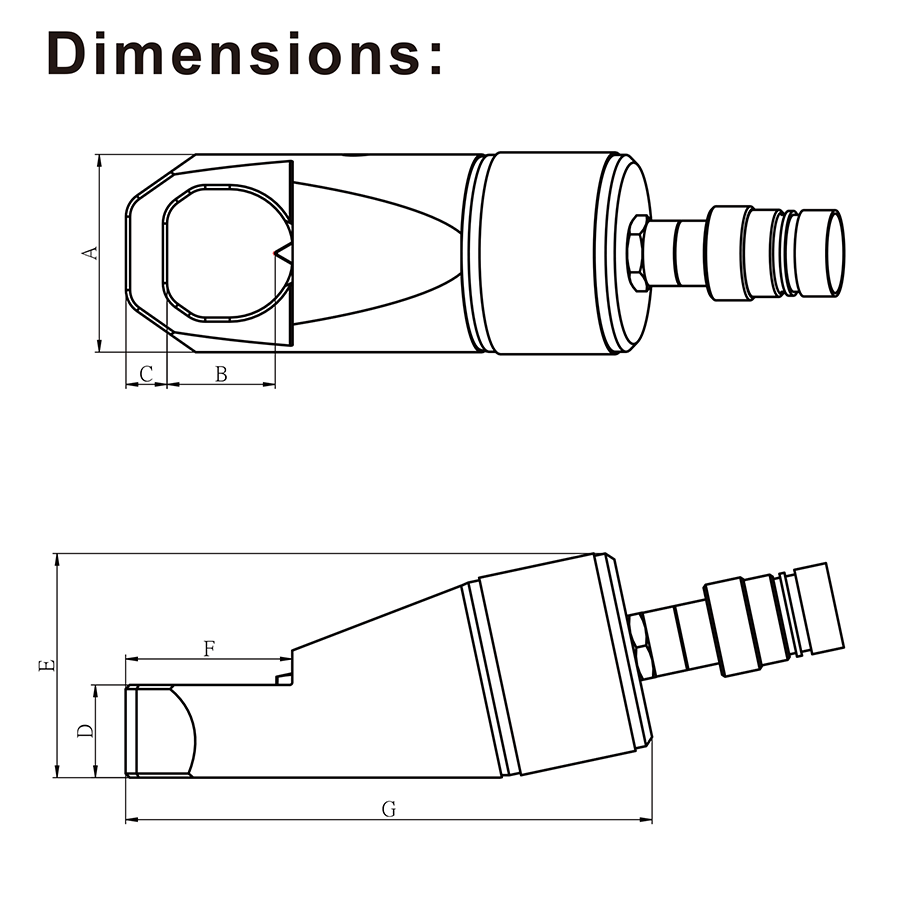

| Model No | A | B | C | D | E | F | G | Spare Chisels No. | ||
| HYNC-1319 | 40 | 21 | 7 | 19 | 50 | 29 | 120 | HYNC-1319#4 | Chisels | |
| HYNC-1924 | 54 | 25 | 10 | 25 | 62 | 40 | 146 | HYNC-1924#4 | Chisels | |
| HYNC-2432 | 64 | 33 | 13 | 30 | 76 | 52 | 180 | HYNC-2432#4 | Chisels | |
| HYNC-3241 | 70 | 42 | 16 | 36 | 87 | 65 | 205 | HYNC-3241#4 | Chisels | |
| HYNC-4150 | 90 | 52 | 21 | 45 | 108 | 76 | 245 | HYNC-4150#4 | Chisels | |
| HYNC-5060 | 106 | 60 | 24 | 54 | 125 | 92 | 288 | HYNC-5060#4 | Chisels | |
| HYNC-6075 | 156 | 80 | 27 | 75 | 184 | 110 | 365 | HYNC-6075#4 | Chisels | |
※Caution :
Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.
■ Accessories :
| Model No. | Hex Wench(mm) | Packaging |

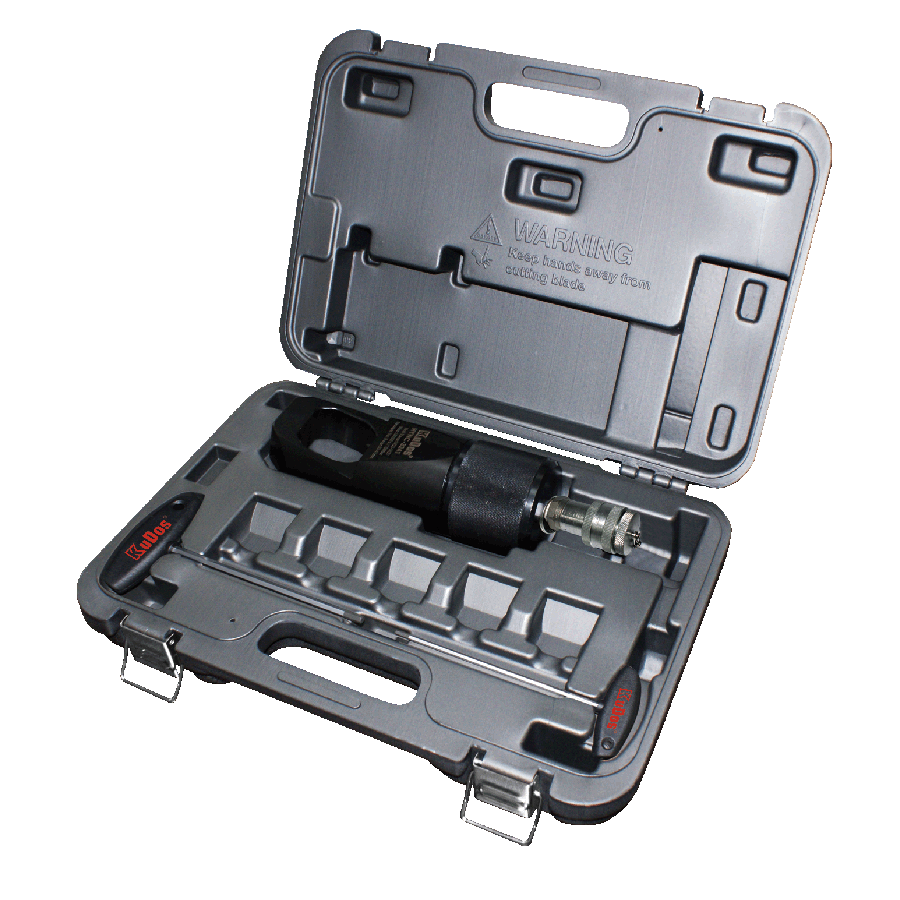

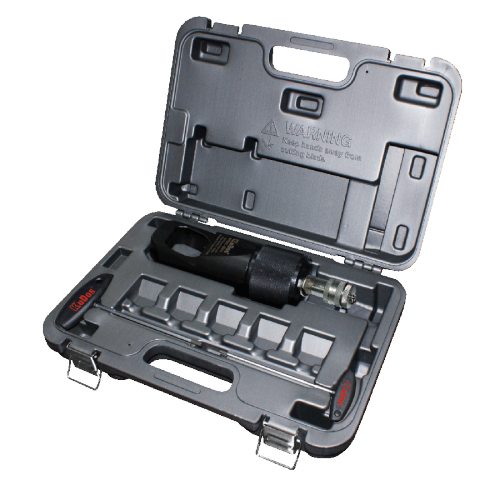

| HYNC-1319 | 2.5 & 4 | KuDos ® Plastic Carrying Case |
| HYNC-1924 | 3 & 5 | |
| HYNC-2432 | 3 & 5 | |
| HYNC-3241 | 4 & 6 | |
| HYNC-4150 | 4 & 6 | |
| HYNC-5060 | 5 & 6 | |
| HYNC-6075 | 5 & 6 | Crate |
