Detail
Length : 378 mm
Weight : 36.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil required : 420 cc
Max. output : 110.82 tons / 985.9 Kn
Ram stroke : 29.5 mm
■ Crimping Capacity :
Crimping range :
Copper : up to 64 mm O.D.sleeve
Aluminum : up to 71 mm O.D.sleeve
Steel : up to 32 mm O.D.sleeve
※Single / Double hydraulic pump required
■ Features :
Operated by any double-acting hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Functional handles for easy carrying and repositioning.
Removable die cap for easy connector positioning.
Ram retracts hydraulically ; the ram retracting time is 1/3 of spring return.

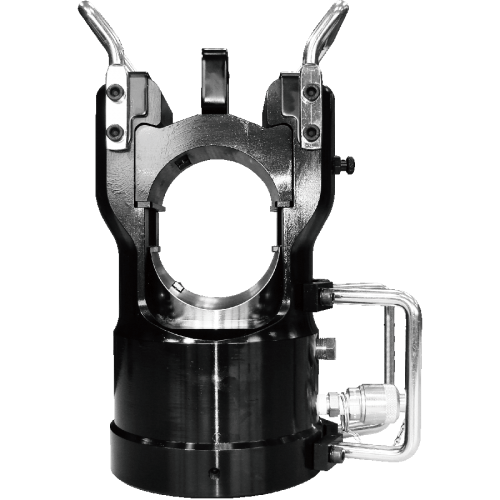

Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.
