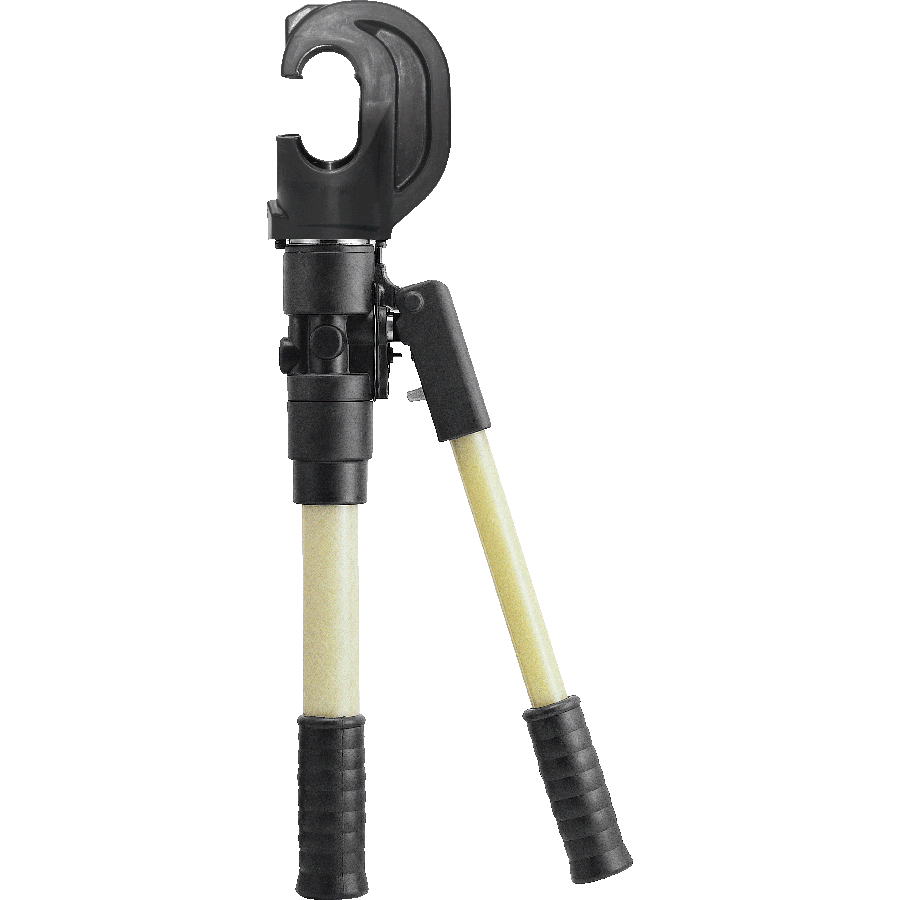

HYCP-4413C

 Detail

Length : 641 mm
Weight : 7.9 kgs

■ Specifications:
Max. Pressure : 700 bar
Oil Required : 80 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw opening : 44 mm

■ Crimping Capacity:
Max. Compression : 400mm2 copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.

※Dies sold separately (CU 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

■ Features:
Fiberglass handles are durable and light weight.
Pressure relief valve for overload protection.
Automatic low / high-pressure conversion with rapid/slow operating motion.
180° rotating head for convenient operation.
External adjustable relief valve.
Two-stage hydraulic system reduces the number of pumps required.

■ Accessories:

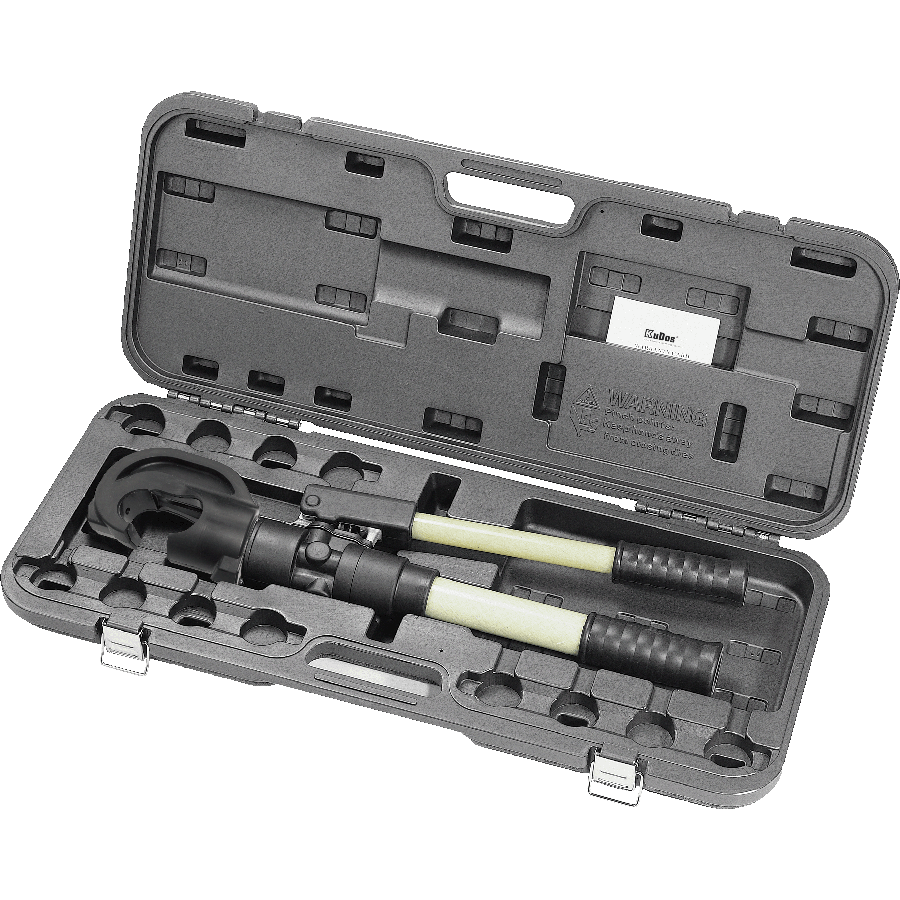

Plastic carrying case
