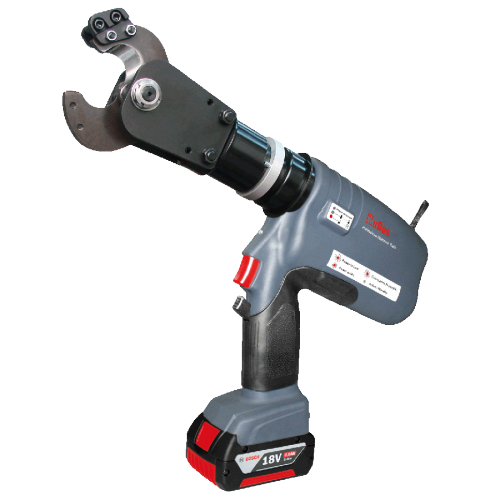

LEC-30A

 Detail

Height : 418 mm
Weight : 5.3 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 120 cc

■ Cutting capacity :
Max pressure : 700 bar
Max output : 8.78 tons / 78.1 kN
Oil required : 23 cc
Cu strands : 28 mm
Al strands : 28 mm
ACSR : 19 mm
Telephone cable : 30 mm
CCP cable : 30 mm
Underground cable : 30 mm

※Cutting of piano wire is prohibited.
