Detail
Height : 337 mm
Weight : 2.9 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (BOCSH) :
Input voltage : KCV-54AC-120
110V single phase AC
Input voltage : KCV-54AC-230
230V single phase AC
Input frequency : 50~60 Hz
Input current : 21.75 VA
■ Cutting Capacity :
Max cable diameter :
Nonferrous 54 mm

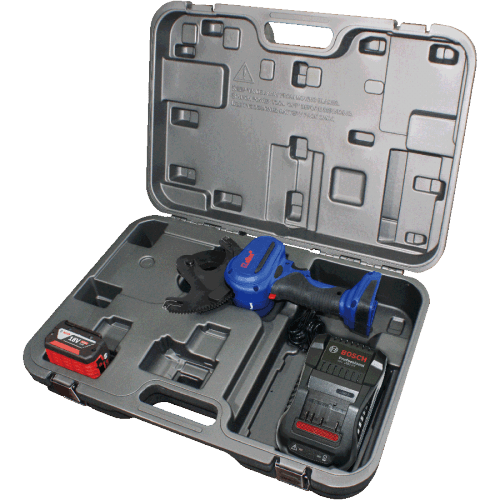

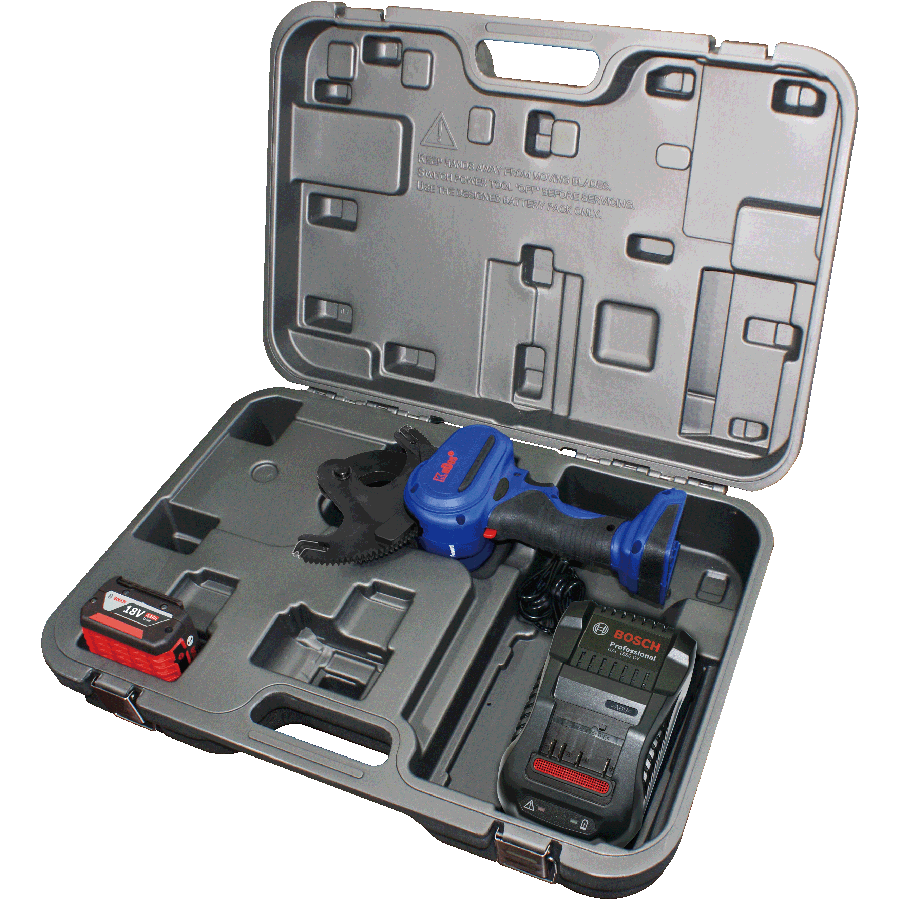

■ Accessories :
KuDos plastic carrying case
18V Battery, 110V or 230V Charger
※For reference only
| Model no. | Specification |
| Polyethylene cable | 600V-CV325 mm²; (31 mm OD) |
| Polyethylene cable | 600V-CV150 mm²; x 3 (46 mm OD) |
| 600V-CV500 mm²; (38 mm OD) | |
| 6KV-CVT500 mm²; (45 mm OD) | |
| Multi-core vinyl insulation cable | VVR150 mm²; (47 mm OD) 3 core |
| Soft copper cable | IV500mm²; (35 mm OD) |
| Hard copper cable | 150mm²; (21 mm OD) |
