HYBC-120

 Detail

Height : 410 mm
Weight : 14.8 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 131 cc
Max. Output : 24.13 tons / 214.7 kN

■ Cutting capacity :
Max. Width : 120 mm
Max. Thickness : 12 mm
Suitable Materials : aluminum, copper, iron

■ Features :

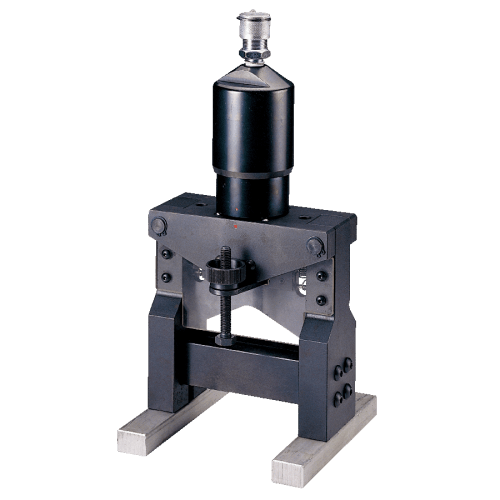

Vertical stand ideally suited for cutting solid copper and aluminum bus bars.
Level and precise cut.
Great cutting capacity.
Single action cylinder can be uncoupled from the cutting capacity.
The cylinder can also be connected to our bus bar bending model HYBN-120.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
