BC160-27

 Detail

Height : 425 mm
Weight : 19.6 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 162 cc
Max. Output : 29.79 tons / 265.0 kN

■ Cutting capacity :
Max. Width : 160 mm
Max. Thickness : 12 mm
Suitable Materials : aluminum, copper, iron

■ Features :

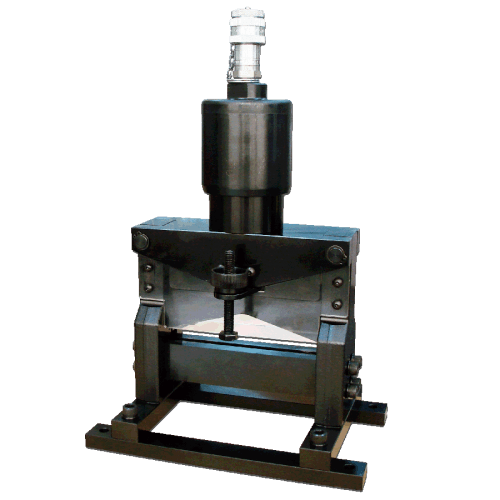

Vertical stand ideally suited for cutting solid copper and aluminum bus bars.
Level and precise cut.
Great cutting capacity.
Single action cylinder can be uncoupled from the cutting unit.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
