PNST-10 / PNST-10M

 Detail

Weight : 7.6 kgs

■ Punching capacity :
Max. Thickness
Stainless Steel : 1.6 mm
Mild Steel : 3.2 mm
4 inch diameter hole on 3.2 mm thickness mild steel

■ Features :
Suitable to punch holes in electrical panels, switchboards and others.
Single action cylinder with spring release.
Fast, easy, and simple to operate.
Compact design makes this a perfect choice for use on construction sites and maintenance jobs.
Powerful 14.01 ton hydraulic ram.

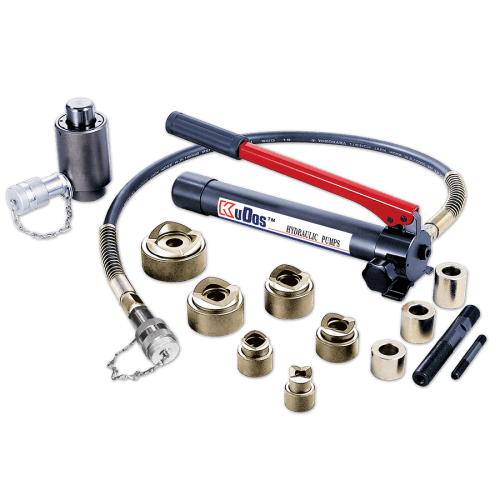

■ Accessories :
■ PNST-10
‧ HP-180N
‧ PDV-10
‧ Draw stud (3/4”, 3/8”)
‧ Spacer (S,M,L)
‧ Plastic case
‧ 6 Punch die sets :
  1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

■ PNST-10M
‧ HP-180N
‧ PDV-10
‧ Draw stud (3/4”, 3/8”)
‧ Spacer(S,M,L)
‧ Plastic case
‧ 6 Punch die sets :
  16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm

※Do not use HP-180N with any compression head that requires a relief valve to ensure a constant compression.

■ Punch driver : PDV-10
Ram Stroke : 25 mm
Oil Required : 47 cc
Max. Output : 14.01 tons / 125 kN

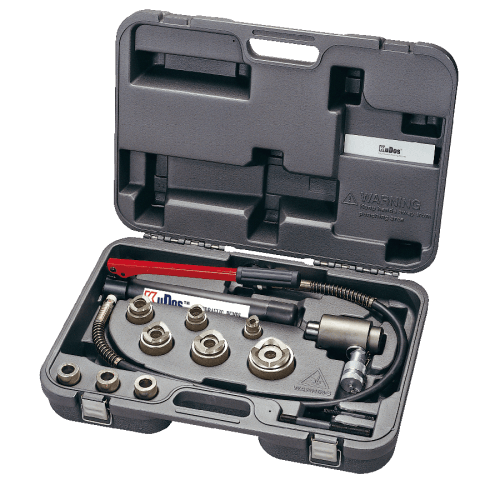

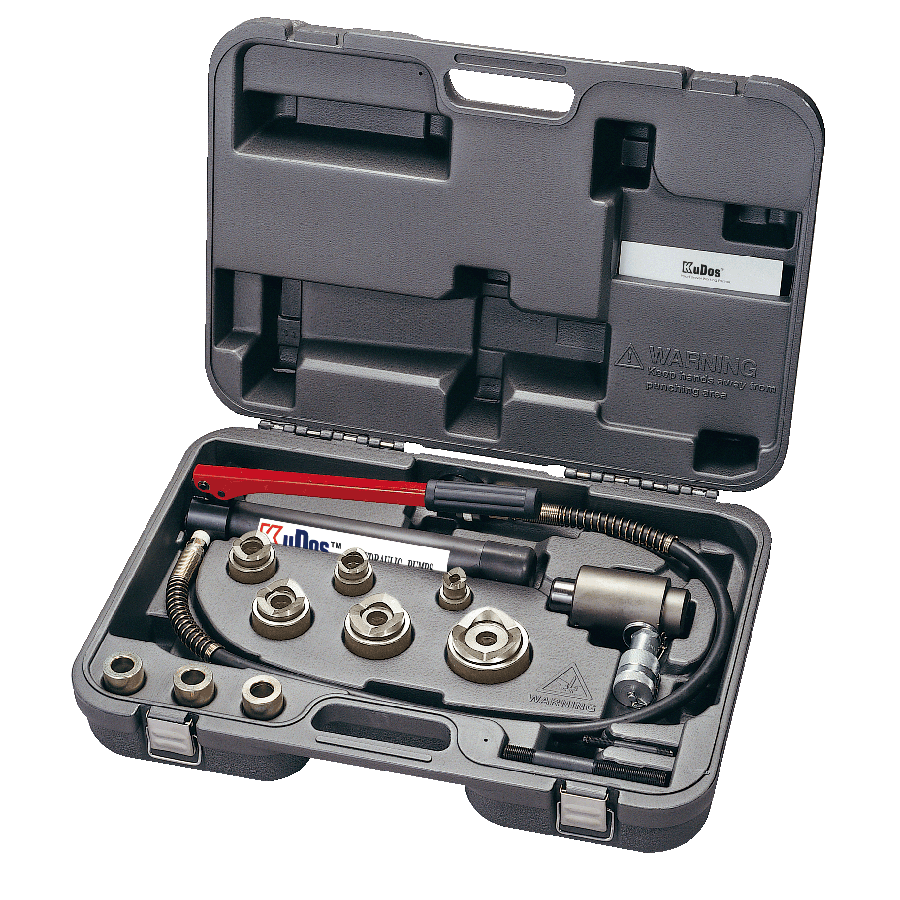

■ Packaging :
Plastic carrying case
