HYCP-60ST

 Detail

Length : 446 mm
Weight : 21.3 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 308 cc
Max. Output : 60.81 tons / 541.0 kN
Ram Stroke : 38.7 mm

■ Crimping Capacity :
Crimping range : up to 60 mm O.D.sleeve
Accepts all dies used for Alcoa, 60 ton compressors
Single-Acting hydraulic pump required

※Dies are manufactured on request only

■ Features :
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Single action cylinder with spring return.

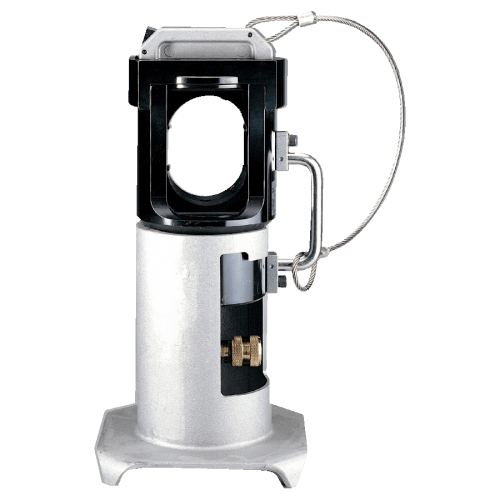

Detachable ground stand as a standard accessory.
Large handle for easy carrying.
Removable die cap for easy connector positioning.
Solid metal loop at base for hoist work.
Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.

■ Accessories :

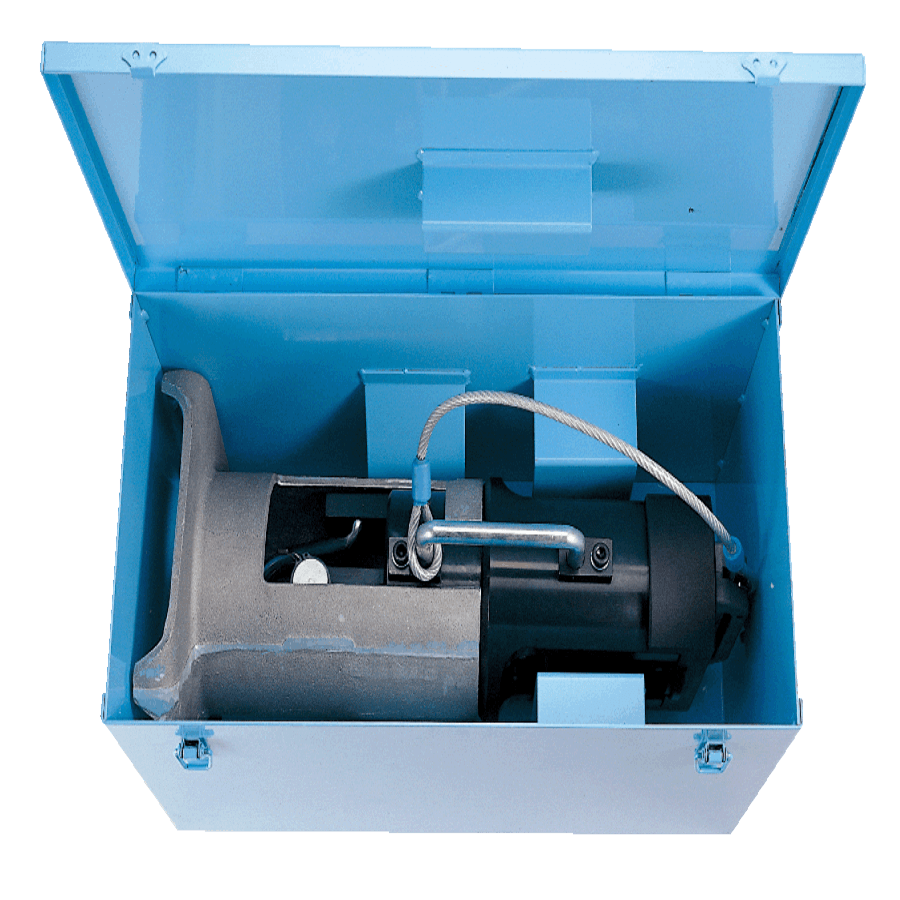

Metal case
