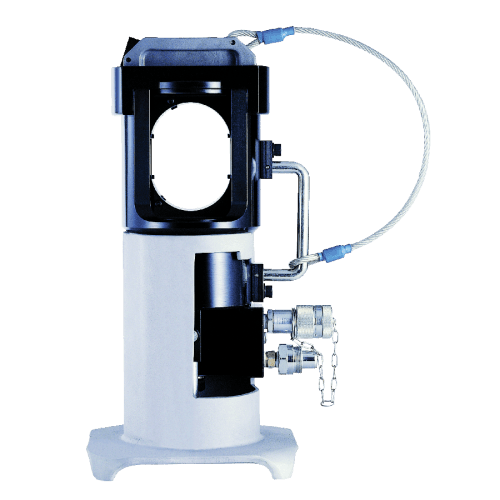

HYCP-60D

 Detail

Length : 446 mm
Weight : 23.3 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 298 cc
Max. Output : 60.81 tons / 541.0 Kn
Ram Stroke : 38 mm

■ Crimping Capacity :
Crimping range : up 60 mm O.D.sleeve
Accepts all dies used for Alcoa, 60 ton compressors
Double-acting hydraulic pump required

※Dies are manufactured on request only

■ Features :
Solid metal loop at base for hoist work.
Ram retracts hydraulically; the ram retracting time is 1/3 of spring return.
Operated by any double-acting hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Detachable ground stand as a standard accessory.
Large handle for easy carrying.
Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.

■ Accessories :

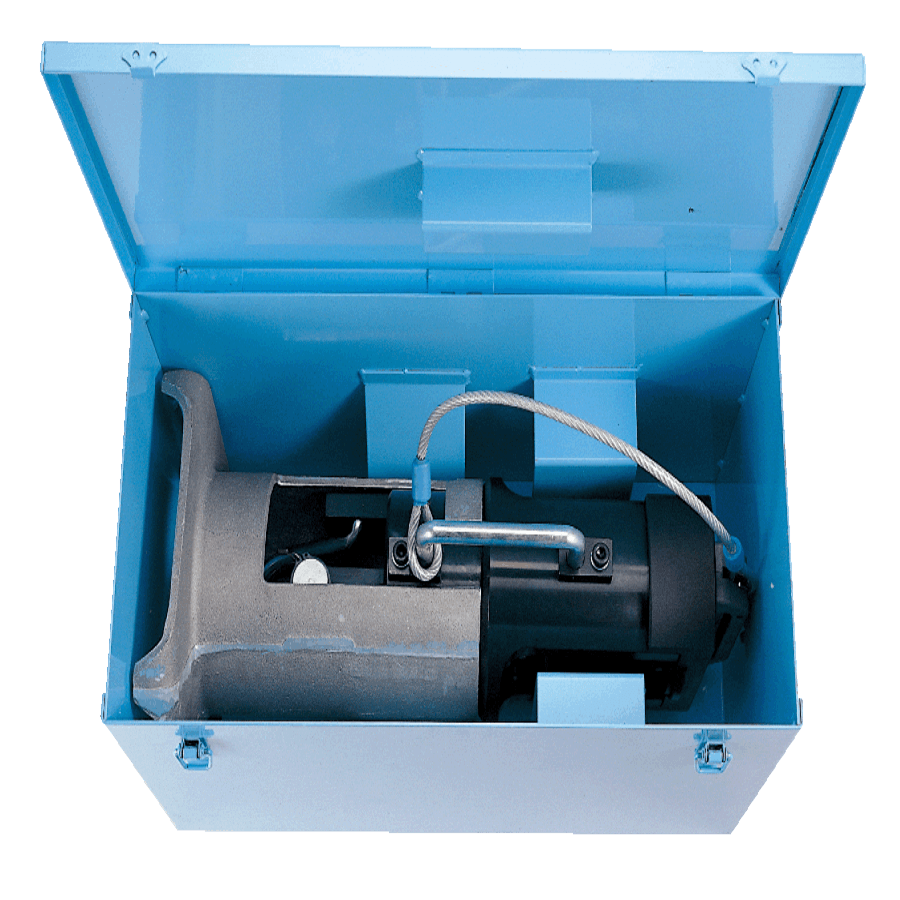

Metal case
