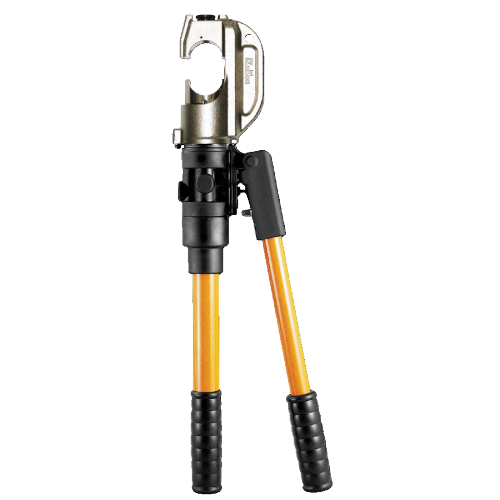

UB-412T

 Detail

Length : 630 mm
Weight : 6.4 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 53 cc
Max. Output : 12.87 tons / 114.5 kN
Jaw opening : 32 mm

■ Crimping Capacity :
Max. Compression : 400mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.

※Dies sold separately (CU 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

■ Features :
180° rotating head for convenient operation.
Fiberglass handles are durable and light weight.
External adjustable relief valve.
Pressure relief valve for overload protection.
Automatic low / high-pressure conversion with rapid/slow operating motion.
Two-stage hydraulic system reduces the number of pumps required.

■ Accessories :

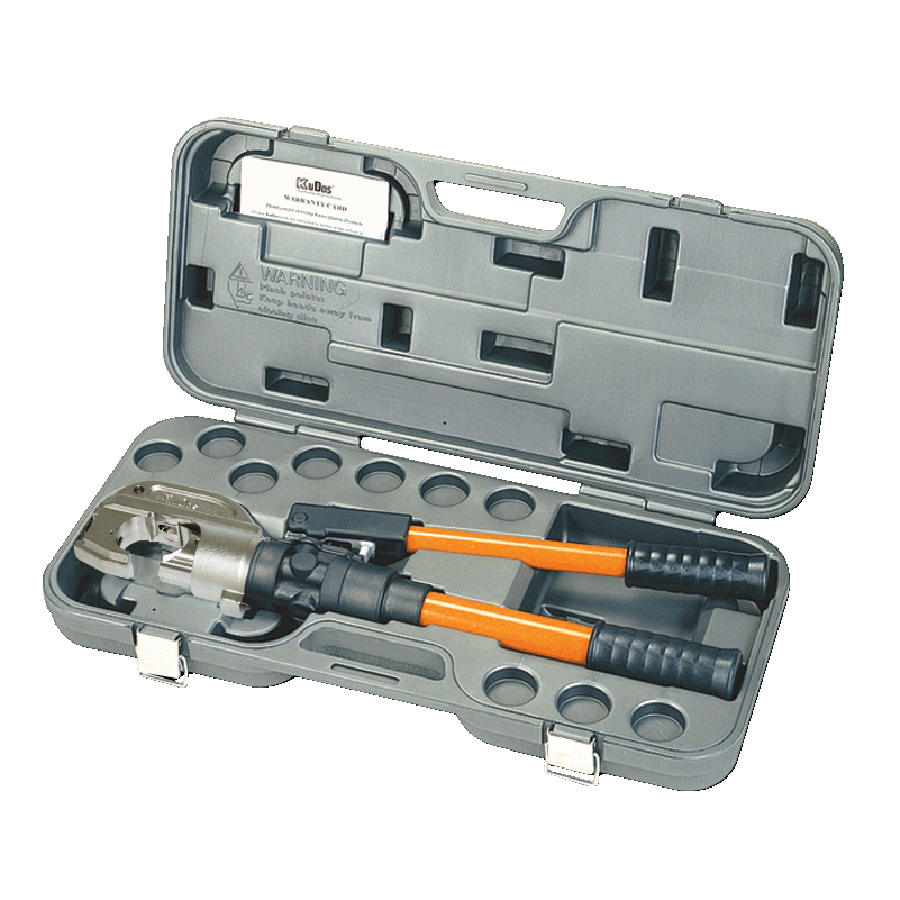

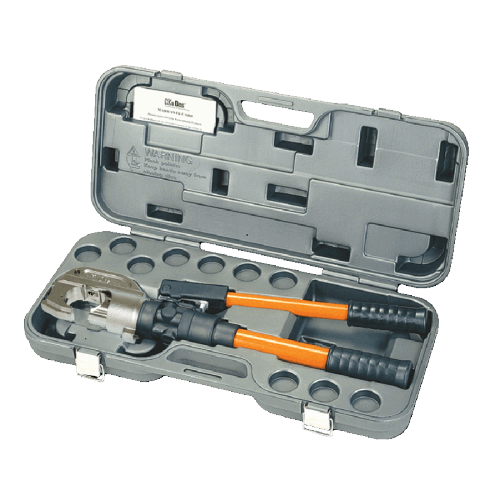

Plastic carrying case
