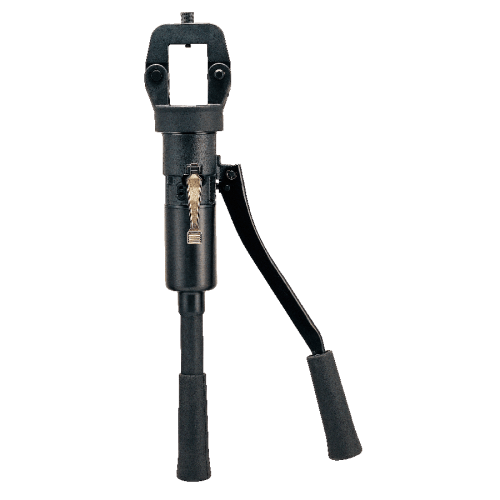

HH-400XL

 Detail

Length : 559 mm
Weight : 5.8 kgs (Dies not included)

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 57 cc
Max. Output : 15.82 tons / 140.7 kN

■ Features :
Light weight, compact and slim design.
Single stage pumping for rapid ram advance.
Relief valve.
Head rotates through 180° for difficult working environment.

■ Accessories :

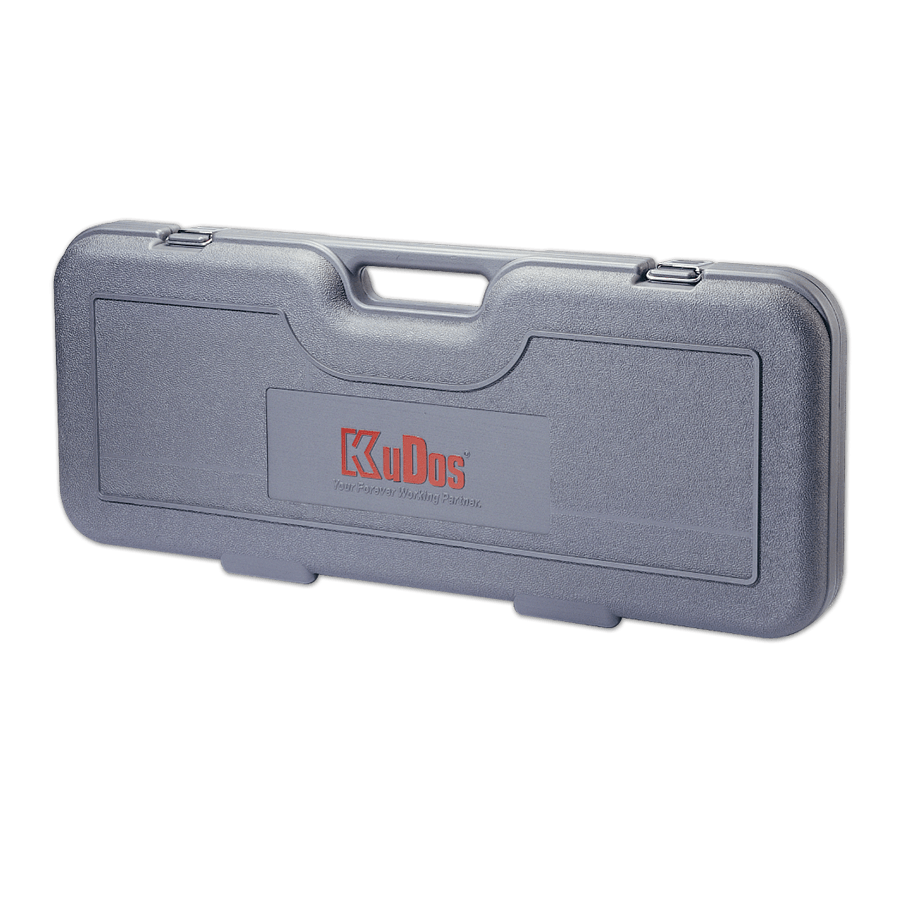

Plastic carrying case

※Crimping tope only without any die set.

※Dies sold separately

■ Model No. HH-400XL

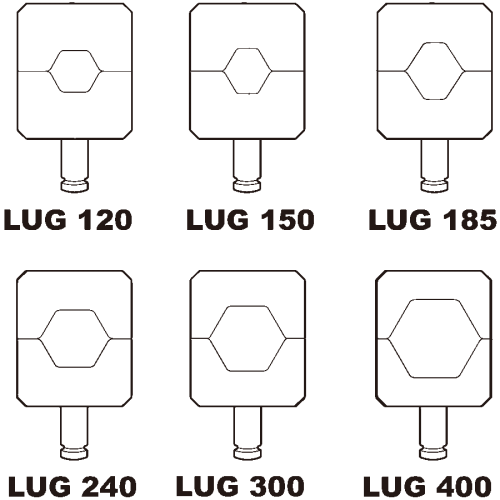

With 6 of hexagonal die set for cable lug 120 to 400 mm²
Die set : LUG120, LUG150, LUG185, LUG240, LUG300, LUG400
