UCP-2712

 Detail

Length : 590 mm
Weight : 6.2 kgs

■ Specifications :
Max. Pressure : 700 bar / 10,000 psi
Oil Required : 50 cc
Max. Output : 14.01 tons / 124.6 kN

■ Crimping Capacity :
Max. Compression : 400mm²  copper lugs.
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.

※Dies sold separately ( CU 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

■ Features :
180° rotating head for convenient operation.
Fiberglass handles are durable and light weight.
External adjustable relief valve.
Pressure relief valve for overload protection.
Automatic low / high-pressure conversion with rapid/slow operating motion.
Two-stage hydraulic system reduces the number of pumps required.

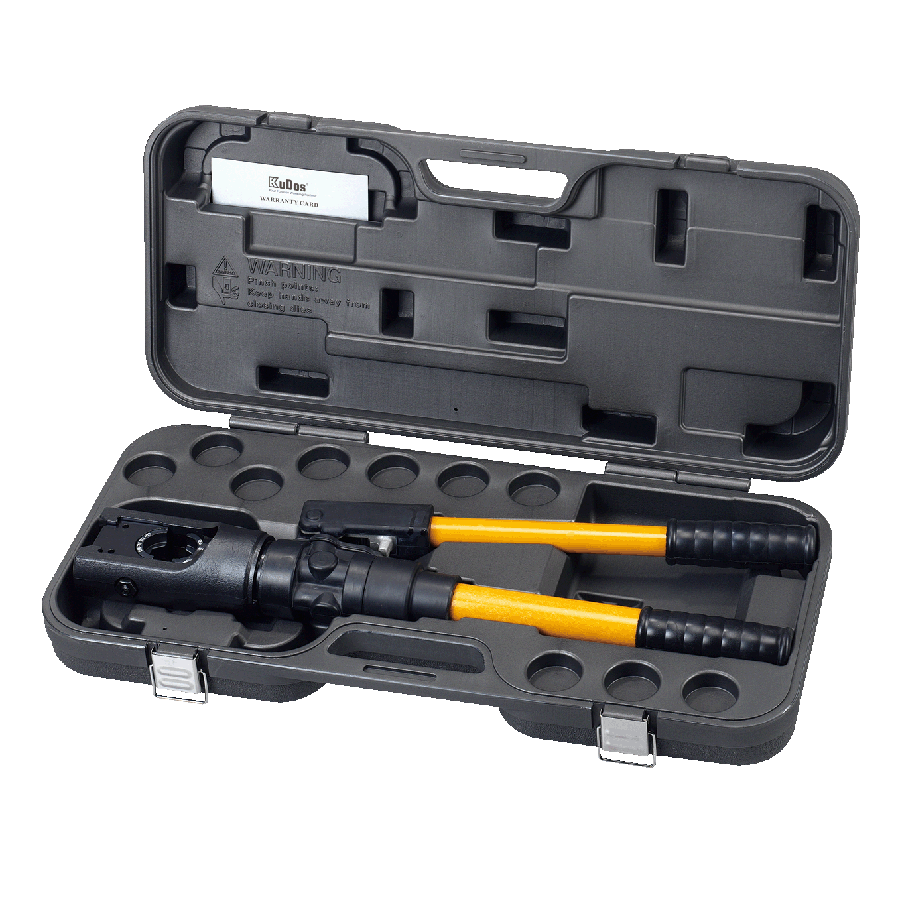

■ Accessories :
Plastic carrying case
