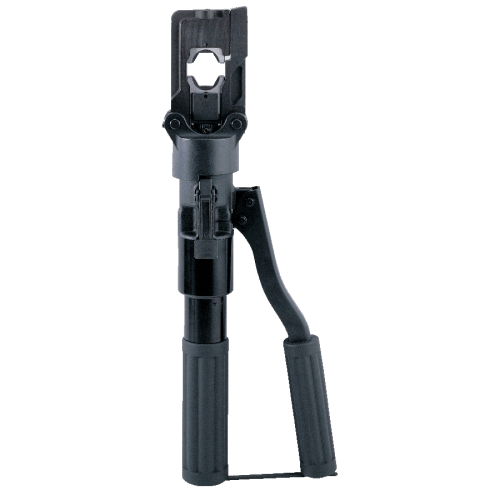

HYCP-185

 Detail

Length : 373 mm
Weight : 2.1 kgs

■ Specifications :
Max. Pressure : 550 bar
Oil Required : 16 cc
Max. Output : 5.85 tons / 52.0 kN
Crimping Capacity
Accepts BEKU type dies
Stock Dies are for DIN 46235 Terminals

※Dies sold separately (AHE-1016 / 2535 / 5070 / 95120 / 150 / 185)

■ Features :
Light weight, compact and slim design.
Single action cylinder with spring return.
Accepts BEKU type dies.
Yoke and Latch type head for easy die changes and removal of connectors.
Adjustable ram stroke, 10-15 mm to minimize pumping action.
Built-ln bypass relief valve.
Small handle spread for close quarter applications.

■ Accessories :

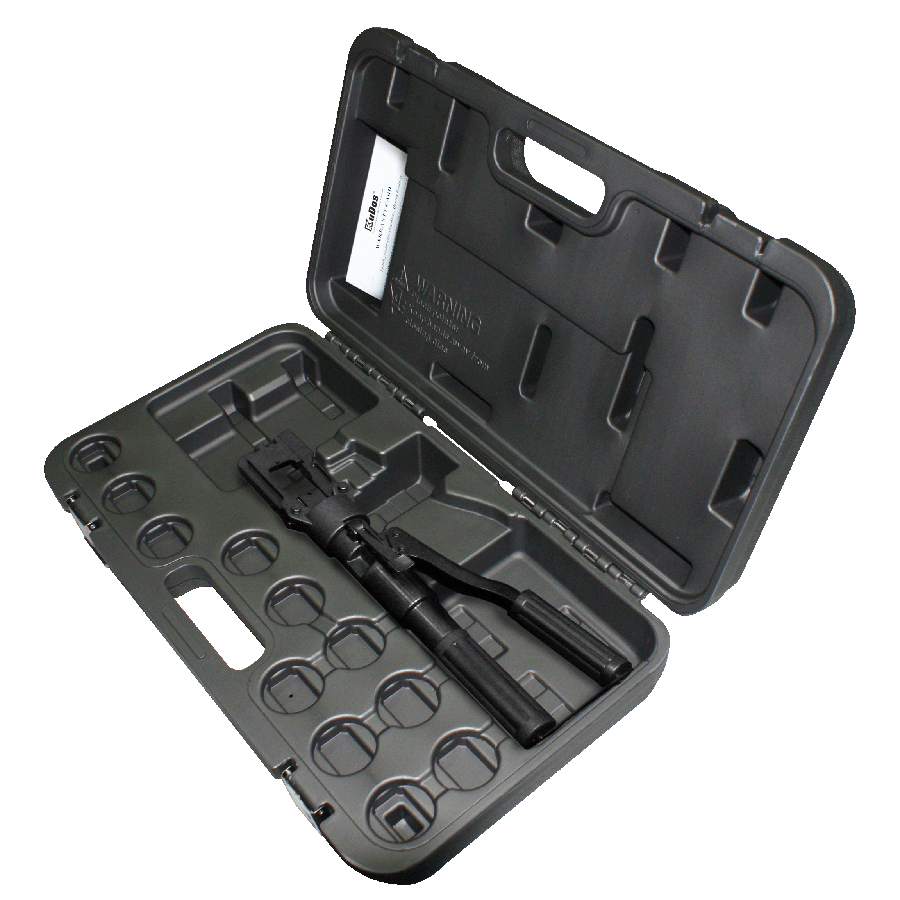

Plastic carrying case
