Length : 170 mm
Weight : 3.0 kgs

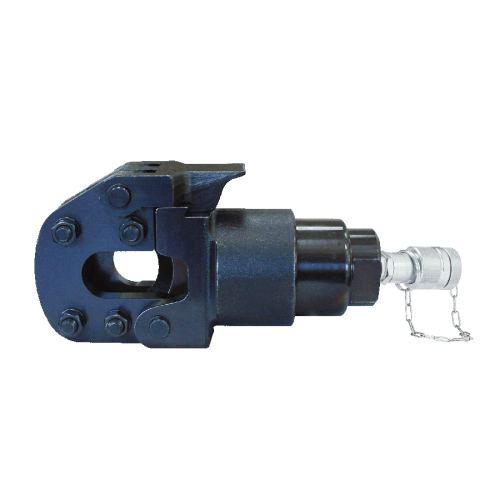

■ Specifications :
Max pressure : 700 bar
Oil required : 30 cc
Max output : 8.78 tons / 78.1 kN
■ Cutting capacity :
Wire rope 6x7 : 18 mm
Wire rope 6x12 : 24 mm
Wire rope 6x19 : 24 mm
Soft steel bar : 20 mm
Reinforcing rod : 16 mm
Cu strands : 24 mm
Al strands : 24 mm
ACSR : 24 mm
Guy wire 1x7 : 20 mm
Guy wire 1X19 : 20 mm
Soft copper bar : 24 mm
Soft aluminum bar : 18 mm
Underground cable : 24 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Single action piston/cylinder arrangement
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.
■ Accessories :

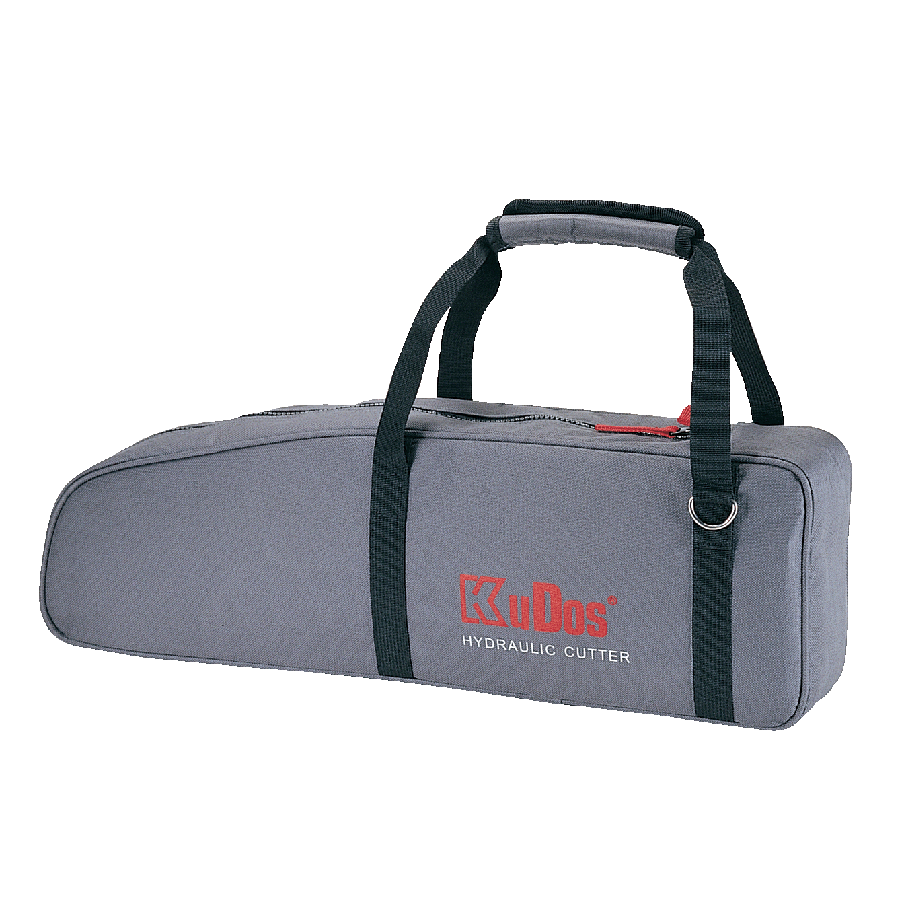

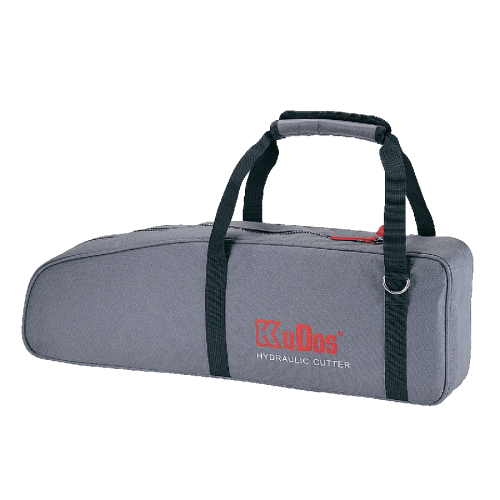

Carrying bag
